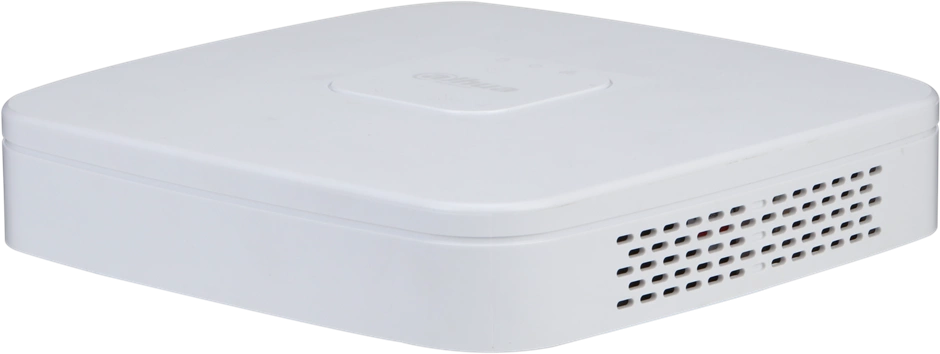

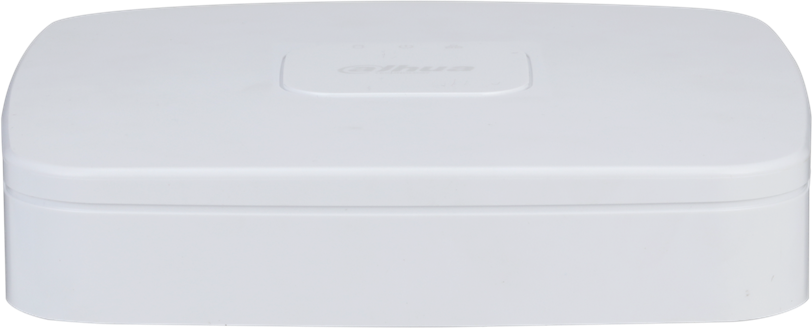

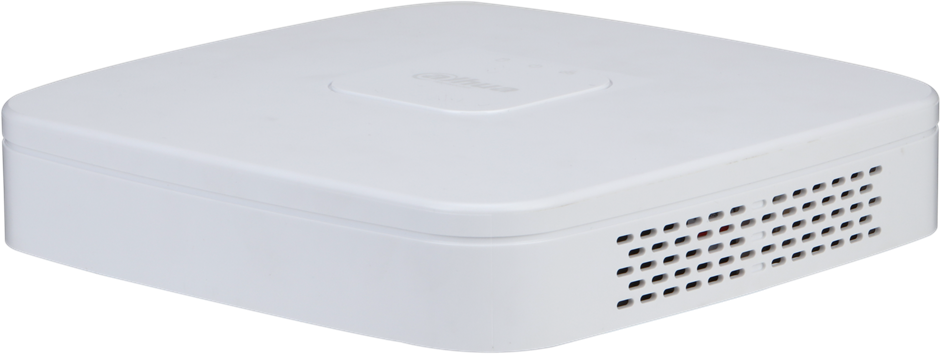

Dahua DHI-NVR2104-4KS3 1U SMD NVR PLus 4 channels IP 12 MP 1x SATA 20 TB

DHI-NVR2104-4KS3 4CH Smart 1U 1HDD Lite Network Video Recorder

The DHI-NVR2104-4KS3 Series NVR2000-4KS3 Lite Network Video Recorder supports up to 12 MP resolution and 4 video channels at a maximum throughput of 80/80/60 Mbps (input/recording/output). The device offers SMD PLus functions implemented by the DVR and support for advanced AI functions by the cameras, according to the manufacturer's documentation.

• Support for Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG.
• Maximum decoding capability: up to 6 × 1080p@30 fps (AI disabled).
• Support for IP cameras with up to 12 MP resolution.
• AI by Recorder with support for 4 SMD channels PLus.
• AI by Camera with support for perimeter protection (perimeter protection) and SMD.
• 1 SATA drive bay with a capacity of up to 20 TB (limit depending on ambient temperature).

AI general description and features

The NVR2000-4KS3 Lite Series, which includes the DHI-NVR2104-4KS3, is designed as a 4-channel 4K network video recorder with the ability to operate as edge, central or backup storage, with an intuitive shortcut menu for remote management and control, according to the manufacturer's documentation. Applied Smart Motion Detection technology (SMD PLus) with intelligent algorithm allows to categorize objects triggering motion detection and filter alarms triggered by irrelevant objects, increasing the efficiency and accuracy of alarms.

Perimeter protection and channel operation

The perimeter protection implemented by the cameras automatically filters out false alarms caused by animals, rustling leaves, strong lights and similar disturbances, enabling the system to identify targets secondarily and improving alarm accuracy. All channels can support perimeter and SMD protection functions on the camera side (up to 4 targets/s for perimeter protection and up to 8 targets/s for SMD), while on the DVR side, 4 channels support SMD PLus with secondary filtering of human objects and motor vehicles, reducing false alarms caused by leaves, rain or changes in lighting.

Specifications

Technical data source:manufacturer's documentation DAHUA datasheet of model DHI-NVR2104-4KS3 Dokumentacja producenta

FAQ - frequently asked questions

• How many IP channels does the DHI-NVR2104-4KS3 DVR support?
  The DVR supports 4 IP channels (Access Channel: 4 channels).
• What is the maximum resolution of supported IP cameras?
  The DVR supports IP cameras with up to 12 MP resolution.
• What video compression formats are supported?
  Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG formats are supported.
• What are the maximum network bandwidths of the device?
  The maximum bandwidth is 80 Mbps for incoming stream, 80 Mbps for recording, and 60 Mbps for outgoing stream.
• What are the decoding capabilities with AI functions disabled?
  With AI disabled, the DVR supports 1 × 12 MP@30 fps, 1 × 8 MP@30 fps, 2 × 6 MP@30 fps, 2 × 5 MP@30 fps, 3 × 4 MP@30 fps or 6 × 1080p@30 fps.
• What are the decoding capabilities with AI enabled?
  With AI enabled, 1 × 8 MP@30 fps, 1 × 6 MP@30 fps, 1 × 5 MP@30 fps, 2 × 4 MP@30 fps or 4 × 1080p@30 fps are supported.
• Does the DVR support SMD PLus function on the DVR side?
  Yes, SMD PLus by Recorder is supported on 4 channels with secondary filtering of people and motor vehicles.
• Is perimeter protection available on the camera side?
  Yes, AI by Camera supports perimeter protection and SMD on all channels.

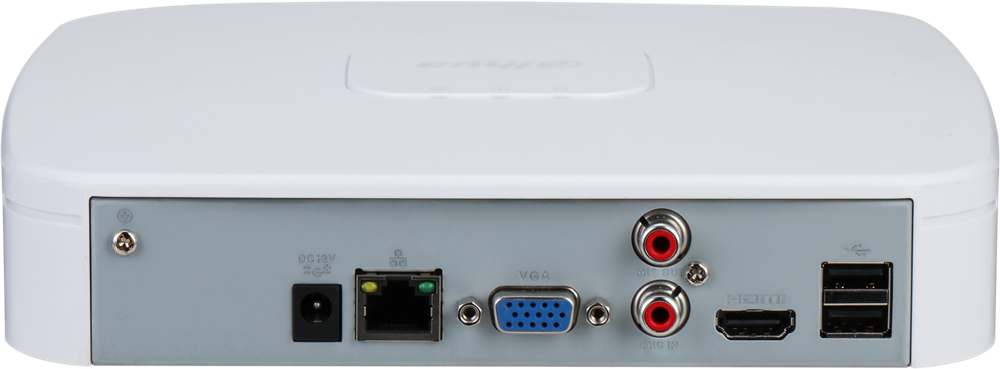

• What video output interfaces does the device have?
  The DVR has 1 HDMI output and 1 VGA output.
• What resolutions do the HDMI and VGA outputs support?
  HDMI supports 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720, and VGA supports 1920 × 1080, 1280 × 1024, 1280 × 720.
• How many hard drives can be installed and what is the maximum capacity?
  The device has 1 SATA port, and each drive can have a capacity of up to 20 TB, with the limit depending on the ambient temperature.
• What USB ports are available on the DVR?
  There are 2 rear USB 2.0 ports available.
• What network protocols are supported?
  Supported protocols include HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, IP Search, P2P and Auto Registration.
• What mobile device operating systems are supported for remote access?
  The DVR allows access from iOS and Android devices.
• What ONVIF profiles does the DVR work with?
  The device supports ONVIF 23.12 (Profile T, Profile S, Profile G), as well as CGI and SDK.
• What recording modes are available?
  The available recording modes are general, motion detection, intelligent, and alarm.
• What methods of archiving recordings are supported?
  Backup can be done to USB devices or over the network.
• What are the operating and storage temperature ranges?
  The operating temperature is -10 °C to +55 °C, and the storage temperature is -20 °C to +60 °C.
• What is the power supply and power consumption of the recorder?
  The device is powered by 12 VDC, 1.5 A, and the power consumption is less than 10 W (without HDD).
• What certifications does the device have?
  The DVR is CE-LVD (IEC 62368-1:2014) and CE-EMC certified in accordance with EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015 and EN 50130-4:2011+A1:2014.

The DHI-NVR2104-4KS3 DVR can record and playback video streams from up to 4 IP cameras at up to 12 MP resolution with SMD PLus and perimeter protection features, according to the manufacturer's documentation. The 1U design with one SATA drive bay for up to 20 TB and a wide range of supported network protocols and browsers provides flexible integration in small to medium-sized surveillance systems.
