NVR IP Lite Dahua DHI-NVR2104-P-4KS3 1U 4CH PoE SMD Network Recorder PLus 4K 12 MP

DHI-NVR2104-P-4KS3 4CH Smart 1U 4PoE 1HDD Lite Network Video Recorder

DHI-NVR2104-P-4KS3 is a Lite Series 4-channel network video recorder with 1U chassis, 4 PoE ports and support for 1 HDD. The device supports up to 12 MP and 4K resolution, advanced SMD PLus and perimeter protection realized by camera.

• Supports 4 IP channels.
• Max resolution of cameras up to 12 MP.
• Max throughput of 80/80/60 Mbps (input/recording/output).
• AI by Recorder: SMD PLus on 4 channels.
• 4 10/100 Mbps PoE ports compliant with IEEE 802.3af/at.
• 1 SATA drive bay for up to 20 TB.

System description and features

The DHI-NVR2104-P-4KS3 NVR is part of the NVR2000-4KS3 Lite Series NVR and is designed for applications requiring detailed 4K video and remote management and control from an intuitive menu. It can operate as an edge, central or backup device, offering support for up to 12 MP IP cameras and a maximum throughput of 80 Mbps for incoming streams and recording and 60 Mbps for outgoing streams.

The device features an industrial-grade processor and Embedded Linux operating system, and is operated via a Web interface and local GUI. The DVR supports dual-stream decoding in Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG formats, with a maximum decoding performance of 6 × 1080p@30 fps with AI functions disabled and correspondingly reduced when enabled, according to the manufacturer's specifications.

Smart and network functions

SMD's PLus (AI by Recorder) function uses Dahua's Smart Motion Detection algorithms to classify objects that trigger motion detection and filter out alarms generated by irrelevant targets, enabling secondary object recognition and increasing alarm performance. AI by Camera provides perimeter and SMD protection on all channels, with up to 4 targets/sec for perimeter protection and 8 targets/sec for SMD PLus on camera channels, with secondary filtering of false alarms caused by, for example, animals, leaf noise, changes in lighting or precipitation.

The DVR supports network protocols HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, IP Search (for IP cameras, DVRs, NVS, etc.), P2P and Auto Registration, enabling interoperability with third-party devices thanks to ONVIF 23.12 (Profiles T, S, G), as well as CGI and SDK. Mobile access is realized via iOS and Android devices, and viewing and configuration via Chrome, IE, Safari, Edge and Firefox browsers.

Recording, playback and alarms

The device supports general, motion detection, smart and alarm recording, with playback of up to 4 channels simultaneously. Instant, general, event, post-tag and smart playback modes are available, and backups can be made to USB devices and over the network. The alarm system includes general alarms (motion detection, external camera alarm, PIR alarm), anomaly alarms (no disk, disk error, low capacity, low space limit, network disconnection, IP conflict, MAC conflict, video loss, camera tampering, offline camera) and smart alarms (perimeter protection, SMD PLus) with related responses such as recording, still images, beep, log, PTZ preset call, email and route.

Specifications

Technical data source:manufacturer's documentation DAHUA datasheet of model DHI-NVR2104-P-4KS3 Dokumentacja producenta

FAQ - frequently asked questions

• How many video channels does the DHI-NVR2104-P-4KS3 DVR support?
  The DVR supports 4 IP video channels.
• What is the maximum resolution of supported IP cameras?
  The device supports IP cameras with a resolution of up to 12 MP.
• What video compression formats are supported?
  Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG formats are supported.
• What are the maximum network bandwidths of the DVR?
  The maximum bandwidth is 80 Mbps for incoming streams, 80 Mbps for recording, and 60 Mbps for outgoing streams.
• What are the video decoding capabilities with AI features disabled?
  With AI disabled, the device decodes a maximum of 1 channel of 12 MP@30 fps, 1 channel of 8 MP@30 fps, 2 channels of 6 MP@30 fps, 2 channels of 5 MP@30 fps, 3 channels of 4 MP@30 fps or 6 channels of 1080p@30 fps.
• How is the decoding performance with AI functions enabled?
  With AI enabled, the DVR supports 1 channel of 8 MP@30 fps, 1 channel of 6 MP@30 fps, 1 channel of 5 MP@30 fps, 2 channels of 4 MP@30 fps or 4 channels of 1080p@30 fps.
• How many hard drives can be installed and what capacity?
  The device has 1 SATA port and supports 1 drive of up to 20TB, with the limit depending on the ambient temperature.
• Does the DVR have PoE ports?
  Yes, the DVR has 4 PoE 10/100 Mbps ports compliant with IEEE 802.3af/at.
• What is the total PoE output power and maximum power of a single port?
  The total PoE output power is 36 watts, and the maximum power of a single port is 25.5 watts.

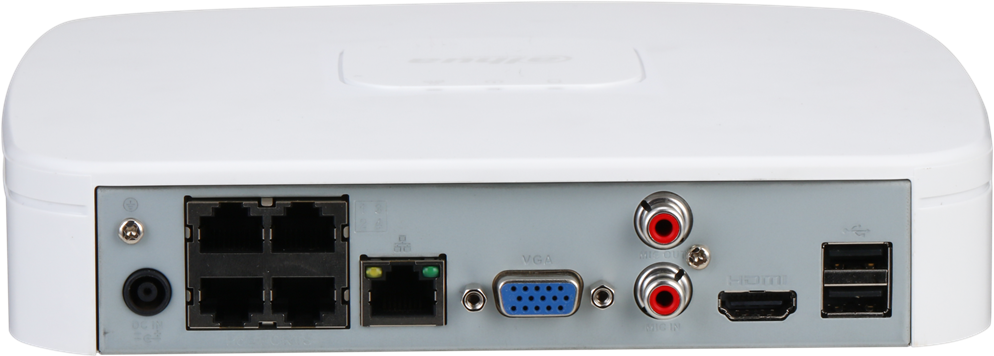

• What video interfaces are available on the device?
  1 HDMI output and 1 VGA output are available.
• What are the supported resolutions of the HDMI output?
  The HDMI output supports resolutions of 3840 × 2160, 1920 × 1080, 1280 × 1024 and 1280 × 720.
• What web browsers are supported?
  The specification states support for Chrome, IE, Safari, Edge and Firefox browsers.
• Is the device compatible with the ONVIF standard?
  Yes, the DVR is compliant with ONVIF 23.12 (Profile T, Profile S, Profile G) and supports CGI and SDK.
• What operating systems are supported for mobile access?
  Mobile access is implemented on iOS and Android devices.
• What recording modes are available on the recorder?
  General, motion detection, smart and alarm recording modes are available.
• How can the recordings be backed up?
  Backups can be made to USB devices and over the network.
• What are the operating conditions of the device in terms of temperature?
  The operating temperature is from -10 °C to +55 °C.
• What safety and EMC certifications does the recorder have?
  The device has CE-LVD certification in accordance with IEC 62368-1:2014 and CE-EMC certification in accordance with the listed EN standards.
• What are the dimensions and weight of the recorder?
  The dimensions of the device are 204.6 × 206.4 × 45.6 mm, and the net weight is 0.48 kg.
• What types of alarms does the recorder support?
  The DVR supports general alarms (including motion detection, PIR alarm), anomaly alarms (including missing disk, video loss) and smart alarms (perimeter protection, SMD PLus), according to the manufacturer's documentation.

The DHI-NVR2104-P-4KS3 DVR provides support for 4 IP channels, PoE power supply, and camera-implemented SMD PLus and perimeter protection functions for efficient and accurate record management. The device offers flexible network integration capabilities and ONVIF compliance, as well as extensive support for resolutions up to 12 MP, according to the manufacturer's documentation.
