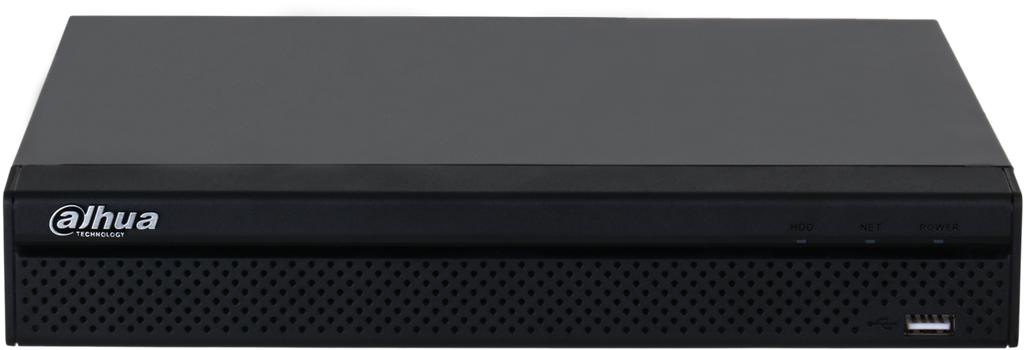

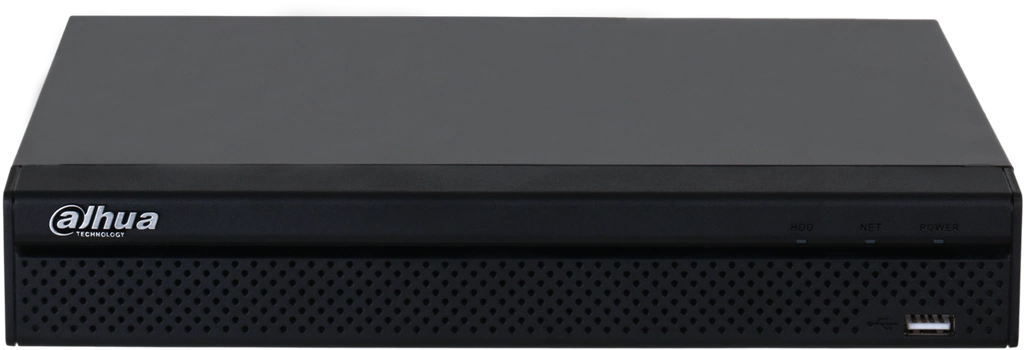

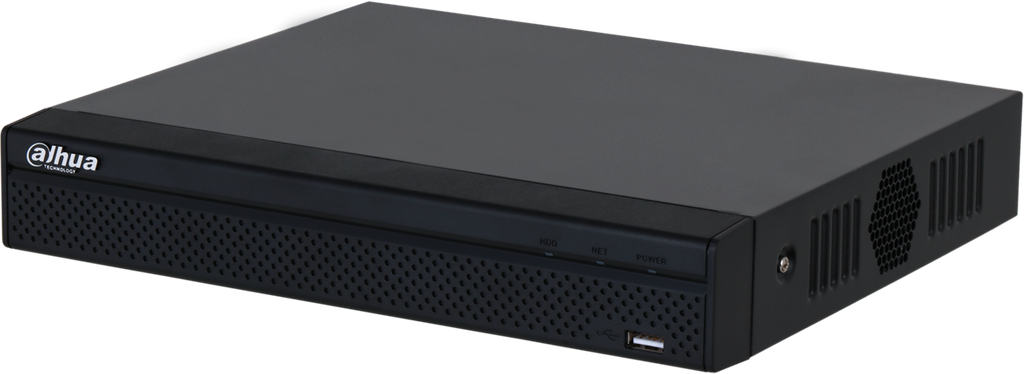

Dahua DHI-NVR2104HS-P-4KS3 4CH compact 1U 1HDD SMD 12 MP 80 Mbps NVR
- 4-channel NVR for recording video from IP cameras, support up to 12 MP resolution, 1 SATA hard drive bay for up to 20 TB hard drive
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
DHI-NVR2104HS-P-4KS3 4CH Compact 1U 1HDD Lite Network Video Recorder
The DHI-NVR2104HS-P-4KS3 is a 4-ch Compact 1U 1HDD Lite Network Video Recorder supporting up to 12 MP resolution and Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding. The device offers maximum decoding performance of 6 × 1080p@30 fps, throughput of 80/80/60 Mbps (input/recording/output), and AI functions such as SMD and perimeter protection, according to the manufacturer's documentation.
- NVR2000-4KS3 series, model DHI-NVR2104HS-P-4KS3
- 4 IP channels with support for cameras up to 12 MP
- Max decoding: 6 × 1080p@30 fps (AI on/off according to the table)
- Max network bandwidth: 80 Mbps incoming, 80 Mbps recording, 60 Mbps outgoing
- AI functions: SMD, SMD PLus, perimeter protection (AI by Recorder and AI by Camera)
- 1 SATA hard drive bay for up to 20 TB (depending on ambient temperature)
Series description and features
The NVR2000-4KS3 Lite Series are compact network video recorders designed for high-resolution applications, including 4K video support, with an intuitive interface for remote management and control, according to the manufacturer's documentation. The DHI-NVR2104HS-P-4KS3 can operate as an edge, central or backup device, offering Smart Motion Detection (SMD) features to distinguish between people and vehicles and reduce false alarms.
Smart and alarm functions
The Smart Motion Detection PLus (SMD PLus) technology used in the DHI-NVR2104HS-P-4KS3 enables secondary filtering of targets (people and motor vehicles), reducing false alarms caused by, for example, leaves, rain or changes in lighting, according to the manufacturer's documentation. The DVR also supports perimeter protection functions implemented by the camera (perimeter protection), as well as general alarms, anomalies (no disk, disk error, low space, network error, IP/MAC conflict, video loss, video tampering, offline camera), and alarm links such as recording, photo, buzzer, log, preset, email and route.
Video, network and interface support

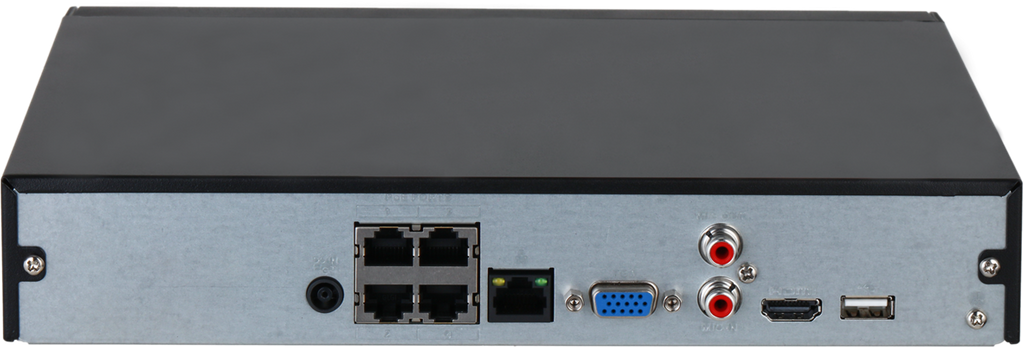

The DHI-NVR2104HS-P-4KS3 supports multiple video (Smart H.265+, H.265, Smart H.264+, H.264, MJPEG) and audio (G.711a, G.711u, PCM, G726) compression formats, offering HDMI and VGA outputs with various resolutions, including up to 3840 × 2160 on HDMI. The device has 4 access channels, a 10/100 Mbps RJ-45 network port, two USB 2.0 ports (one on the front, one on the back) and multi-screen (1/4) viewing modes, as well as support for third-party cameras via ONVIF and HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, IP Search, P2P and Auto Registration protocols, according to the manufacturer's documentation.
Technical specifications
| Category | Parameter | Value |
|---|---|---|
| Model | Model name | DHI-NVR2104HS-P-4KS3 |
| Series | Product Series | NVR2000-4KS3 Series | Lite Network Video Recorder |
| System | Main processor | Industrial-grade processor |
| System | Operating System | Embedded Linux |
| System | Operating interface | Web, Local GUI |
| AI | AI by Recorder | SMD |
| AI | AI by Camera | Perimeter protection; SMD |
| AI | Intelligent Alarm | Perimeter protection; SMD PLus |
| AI | Perimeter Protection - AI performance by Camera | All channels (4 targets/s) |
| AI | SMD PLus by Recorder | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| AI | SMD PLus by Camera | All channels (8 targets/s) |
| Alarm | General alarm | Motion detection; camera external alarm; PIR alarm |
| Alarm | Anomaly alarm | Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
| Alarm | Alarm linkage | Recording; snapshot; buzzer; log; preset; email; tour |
| Alarm | Alarm inputs | NA (2 channels are optional) |
| Alarm | Alarm outputs | NA (1-channel 12 V 1 A output is optional) |
| Audio | Audio input | 1-channel RCA |
| Audio | Audio output | 1-channel RCA |
| Audio | Audio compression | G.711a; G.711u; PCM; G726 |
| Video | Video compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Video | Access channels | 4 channels |
| Video | Resolutions of supported cameras | 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 720p; 960p; D1; CIF; QCIF |
| Video | Max resolution of supported cameras | Up to 12 MP |
| Video | Max decoding (AI disabled) | 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 6-channel 1080p@30 fps |
| Video | Max decoding (AI enabled) | 1-channel 8 MP@30 fps; 1-channel 6 MP@30 fps; 1-channel 5 MP@30 fps; 2-channel 4 MP@30 fps; 4-channel 1080p@30 fps |
| Video | Max network bandwidth | 80 Mbps incoming; 80 Mbps recording; 60 Mbps outgoing |
| Video outputs | Video Output | 1 HDMI, 1 VGA |
| Video Outputs | HDMI resolution | 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720 |
| Video Outputs | VGA resolution | 1920 × 1080; 1280 × 1024; 1280 × 720 |
| Video outputs | Multi-screen dispLay | 1/4 |
| Network | Network port | 1 (10/100 Mbps Ethernet port, RJ-45) |
| Network | Network throughput | 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing |
| Network | Network protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration |
| Networking | Interoperability | ONVIF 23.12 (Profile T; Profile S; Profile G); CGI; SDK |
| Networking | Browsers | Chrome; IE; Safari; Edge; Firefox |
| Networking | Mobile access | iOS; Android |
| Storage | Drive interface | 1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. |
| Backup | Backup method | USB device and network |
| Playback | Playback modes | Instant pLayback; general pLayback; event pLayback; tag pLayback; smart pLayback |
| Playback | Multi-channel pLayback | Up to 4 channels |
| Power supply | Power supply | 12 VDC, 1.5 A |
| Power supply | Power consumption | <10 W (without HDD) |
| Environment | Operating temperature | -10 °C to +55 °C (14 °F to +131 °F) |
| Environment | Storage temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Environment | Operating humidity | 10%-93% (RH), non-condensing |
| Certifications | CE-LVD | IEC 62368-1:2014 |
| Certifications | CE-EMC | EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55032:2015+A11:2020; EN 55035:2017+A11:2020; EN 55024:2010+A1:2015; EN 50130-4:2011+A1:2014 |
| Dimensions and weight | Product dimensions (W × D × H) | 260.0 mm × 232.5 mm × 47.6 mm (10.24" × 9.15" × 1.87") |
| Dimensions and weight | Package dimensions (W × D × H) | 334.0 mm × 89.0 mm × 314.0 mm (13.15" × 3.50" × 12.36") |
| Dimensions and weight | Net weight | 0.85 kg (1.87 lb) |
| Dimensions and weight | Gross weight | 1.39 kg (3.06 lb) |
| Other | Third-party camera access | ONVIF |
| Other | Device type (Ordering Information) | NETWORK VIDEO RECORDER - 4CH Compact 1U 1HDD Lite Network Video Recorder |
| Other | Design Notes | Rev 002.000 © 2024 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. |
Source of technical data:manufacturer's documentation DAHUA datasheet of model DHI-NVR2104HS-P-4KS3. manufacturer's documentation
FAQ - frequently asked questions
- How many video channels does the DHI-NVR2104HS-P-4KS3 DVR support?
The DHI-NVR2104HS-P-4KS3 DVR supports 4 video channels. - What is the maximum resolution of supported IP cameras?
The DVR supports IP cameras with up to 12 MP resolution. - What video compression formats are supported?
The supported video compression formats are Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG. - What is the maximum decoding performance with AI function disabled?
With AI function disabled, the maximum decoding performance is 1 channel 12 MP@30 fps, 1 channel 8 MP@30 fps, 2 channels 6 MP@30 fps, 2 channels 5 MP@30 fps, 3 channels 4 MP@30 fps or 6 channels 1080p@30 fps according to the manufacturer's documentation. - What is the maximum decoding performance with AI function enabled?
With AI function enabled, the maximum decoding capacity is 1 channel of 8 MP@30 fps, 1 channel of 6 MP@30 fps, 1 channel of 5 MP@30 fps, 2 channels of 4 MP@30 fps or 4 channels of 1080p@30 fps. - What is the maximum network bandwidth of the DVR?
The maximum network bandwidth is 80 Mbps for incoming stream, 80 Mbps for recording and 60 Mbps for outgoing stream. - How many hard drives can be installed in the DVR?
The DVR has 1 SATA port and allows the installation of one hard drive. - What is the maximum capacity of a single hard drive?
Each drive can have a capacity of up to 20 TB, with the limit depending on the ambient temperature according to the manufacturer's documentation. - Does the DVR support Smart Motion Detection (SMD)?
Yes, the DVR supports SMD by DVR (AI by Recorder) and SMD and SMD PLus by Camera (AI by Camera). - What functions does SMD PLus by Recorder offer?
SMD PLus by Recorder provides secondary filtering of human and vehicular targets on 4 channels, reducing false alarms caused by foliage, rain and light changes. - Does the recorder support perimeter protection?
Yes, perimeter protection is supported by the camera as part of AI by Camera and smart alarm functions. - What are the playback modes of the recordings?
The available playback modes are instant pLayback, general pLayback, event pLayback, tag pLayback and smart pLayback. - How many channels can be played simultaneously?
Up to 4 channels can be played simultaneously (multi-channel pLayback). - What video output interfaces are available?
The DVR has HDMI and VGA outputs. - What resolution does the HDMI output support?
HDMI output supports resolutions of 3840 × 2160, 1920 × 1080, 1280 × 1024 and 1280 × 720. - What browsers does the web interface of the DVR work with?
The web interface works with Chrome, IE, Safari, Edge and Firefox browsers. - Is the DVR compatible with cameras from other manufacturers?
Yes, the DVR supports third-party cameras thanks to ONVIF compatibility and CGI and SDK support. - What operating systems are supported by apLmobile ications?
ApLications for mobile access to the DVR are available for iOS and Android. - What are the operating conditions of the device?
The operating temperature range is -10 °C to +55 °C, and the operating humidity is 10%-93% RH (non-condensing). - What safety and EMC certifications does the recorder have?
The DVR has CE-LVD (IEC 62368-1:2014) and CE-EMC certifications in accordance with EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015 and EN 50130-4:2011+A1:2014.
DHI-NVR2104HS-P-4KS3 is a compact 4-channel Network DVR Lite with support for up to 12 MP resolution, SMD/SMD PLus features and perimeter protection, designed for applications requiring detailed video according to the manufacturer's documentation. The device offers flexible configuration, high network bandwidth, support for the ONVIF standard, and extensive alarm and video playback functions.
