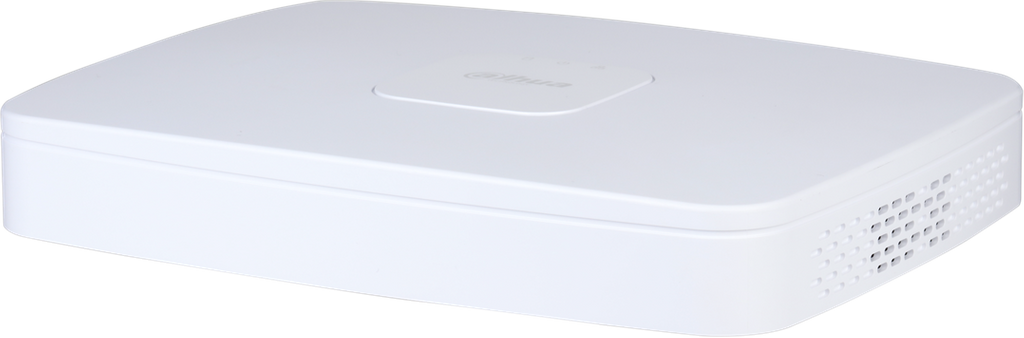

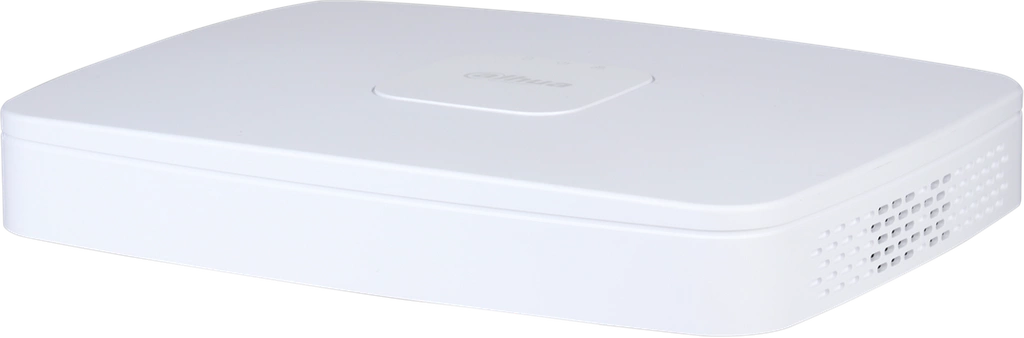

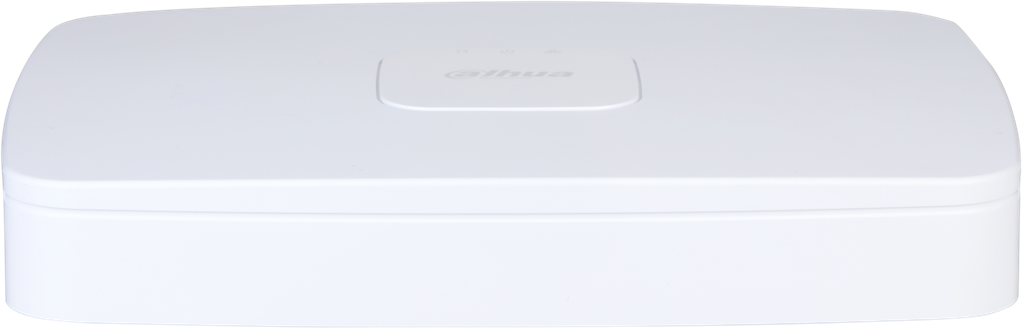

NVR Dahua DHI-NVR2108-8P-4KS3 1U 8 PoE SMD PLus support 12 MP IP cameras

DHI-NVR2108-8P-4KS3 8CH Smart 1U 8PoE 1HDD Lite Network Video Recorder

NVR2000-4KS3 Lite Series network video recorder supporting up to 8 IP channels with up to 12MP resolution and built-in 8-port PoE. The device offers SMD PLus functions, support for perimeter protection by camera and decoding up to 6 × 1080p@30 fps.

• Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG
• Max bit rate: 144/144/72 Mbps (input/recording/output) with AI disabled
• Max resolution of IP cameras up to 12 MP
• AI by Recorder: 4 SMD channels PLus
• AI by Camera: perimeter and SMD protection on all channels
• 8 PoE 10/100 Mbps ports, IEEE 802.3af/at with a total power of 72 watts

System description and features

The NVR2000-4KS3 Lite Series is designed for applications requiring detailed 4K video and can act as edge, central or backup storage with intuitive shortcut menus for remote management and control, according to the manufacturer's documentation. The DVR supports Smart Motion Detection (SMD) by DVR, which distinguishes between vehicles and people and other objects in real time, as well as a single arming and disarming action.

Intelligent AI functions and alarms

The device offers the SMD PLus function with an intelligent algorithm that categorizes targets that trigger motion detection and filters motion alarms triggered by irrelevant targets, increasing the efficiency and accuracy of alarms. The perimeter protection implemented by the camera automatically filters out false alarms caused by animals, rustling leaves, bright lights and other disturbances, enabling the system to identify targets secondarily and improving alarm accuracy; there are also general alarms (motion detection, external camera alarms, PIR alarms), anomaly alarms (ex. disk error, missing disk, video loss, IP conflict) and smart alarms (perimeter protection, SMD PLus) linked to recording, photos, audio, event logging, presets, email and patrol route.

Technical data

Technical data source:manufacturer's documentation DAHUA datasheet of model DHI-NVR2108-8P-4KS3 Dokumentacja producenta

FAQ - frequently asked questions

• How many channels does the DHI-NVR2108-8P-4KS3 DVR support?
  The DVR supports 8 IP channels.
• What is the maximum resolution of supported IP cameras?
  The maximum resolution of supported IP cameras is 12 MP.
• What video compression formats are supported?
  Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG formats are supported.
• What is the maximum bit rate with AI disabled?
  With AI disabled, the maximum bit rate is 144 Mbps for input, 144 Mbps for recording, and 72 Mbps for output.
• What is the maximum bit rate with AI enabled?
  With AI enabled, the maximum bit rate is 72 Mbps for input, 72 Mbps for recording, and 36 Mbps for output.
• What AI by Recorder functions are available?
  SMD function is available, including SMD PLus on 4 channels with secondary filtering for humans and motor vehicles.
• What AI by Camera functions are supported?
  AI by Camera supports perimeter protection (Perimeter protection) and SMD on all channels.
• How many PoE ports does the device have and what is the standard?
  The device has 8 10/100 Mbps PoE ports in IEEE 802.3af/at standard.
• What is the total PoE output power and maximum power of a single port?
  The total PoE power is 72 watts, and the maximum power of a single port is 25.5 watts.
• What is the maximum capacity of a hard drive?
  The maximum capacity of a single SATA drive is 20TB, and this limit depends on the ambient temperature.

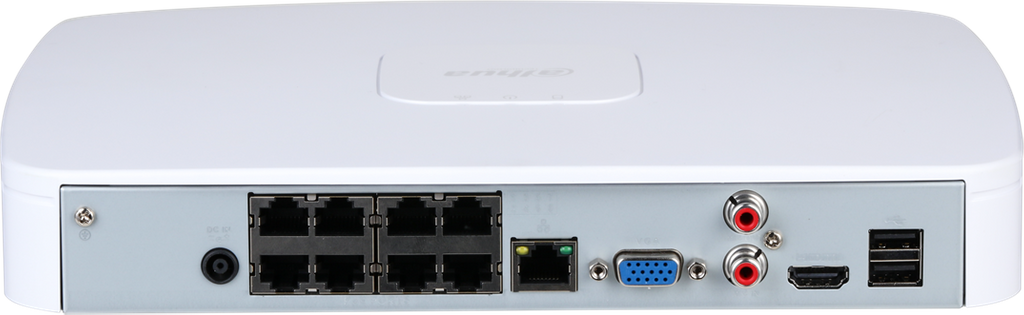

• What video interfaces are available?
  The DVR has one HDMI output and one VGA output.
• What output resolutions does HDMI support?
  HDMI supports resolutions of 3840 × 2160, 1920 × 1080, 1280 × 1024 and 1280 × 720.
• Is the DVR compatible with ONVIF?
  Yes, the DVR is ONVIF 23.12 (Profile T, Profile S, Profile G) compliant and supports CGI and SDK.
• What web browsers are supported?
  Chrome, IE, Safari, Edge and Firefox browsers are supported.
• What network protocols are supported?
  HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, IP Search, P2P and Auto Registration protocols are supported.
• What recording modes are available?
  The available recording modes are General, motion detection, intelligent, and alarm.
• What are the methods of archiving recordings?
  Archiving can be done to USB devices and over the network.
• In what temperature range can the recorder operate?
  The operating temperature range is -10 °C to +55 °C.
• What EMC/LVD standards and certifications does the device meet?
  The device meets IEC 62368-1:2014, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015 and EN 50130-4:2011+A1:2014, among others.
• What are the dimensions and weight of the recorder?
  The dimensions of the device are 270.0 mm × 206.3 mm × 45.9 mm, and the net weight is 0.68 kg.

The DHI-NVR2108-8P-4KS3 DVR provides support for up to 8 IP channels with AI SMD PLus and perimeter protection functions, according to the manufacturer's documentation. The device combines support for high 4K resolutions, PoE power and a wide range of network protocols and EMC/LVD certification.
