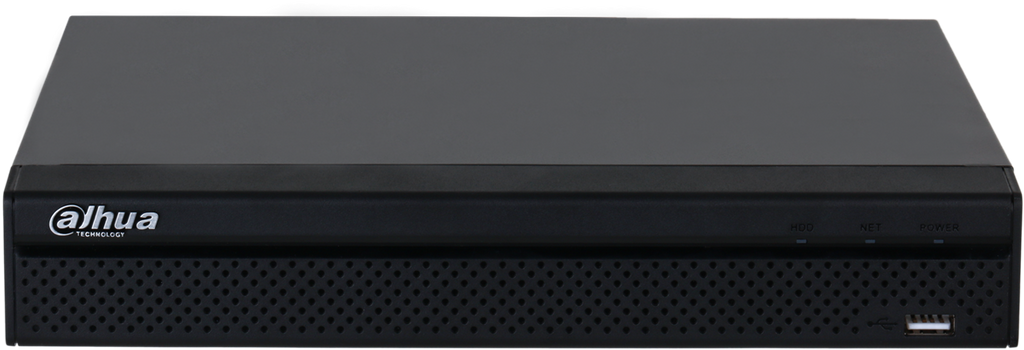

NVR IP Dahua DHI-NVR2108HS-8P-4KS3 1U 8 PoE NVR supporting 12 MP cameras 1x SATA 20 TB

DHI-NVR2108HS-8P-4KS3 8CH Compact 1U 8PoE 1HDD Lite Network Video Recorder

NVR NVR2000-4KS3 Lite Series network video recorder supporting 8 IP channels and integrated 8-port PoE. The unit provides support for up to 12 MP resolution, advanced SMD and perimeter protection features, and can operate as edge, central or backup storage.

• Supports IP cameras with up to 12 MP resolution.
• Max AI throughput disabled: 144 Mbps (input), 144 Mbps (recording), 72 Mbps (output).
• Max AI throughput enabled: 72 Mbps (input), 72 Mbps (recording), 36 Mbps (output).
• Max decoding: up to 6 × 1080p@30 fps or 1 × 12 MP@30 fps (AI off).
• 8 PoE 10/100 Mb/s ports compliant with IEEE 802.3af/at, total PoE power 72 W, max. 25.5 W per port.
• 1 SATA slot with support for up to 20 TB of disk (depending on ambient temperature).

Device description and features

NVR2000-4KS3 model DHI-NVR2108HS-8P-4KS3 is a Lite Series DVR, designed for scenes requiring detailed 4K images and capable of operating as edge, central or backup storage, with an intuitive shortcut menu for remote management and control, according to the manufacturer's documentation. The DVR supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding, provides maximum throughput of 144/144/72 Mbps (input/recording/output) with AI disabled and up to 72/72/36 Mbps with AI enabled, as well as maximum decoding capabilities of up to 1 × 12 MP@30 fps or 6 × 1080p@30 fps (with AI disabled) and correspondingly reduced values with AI features enabled.

AI, detection and alarm functions

The DVR uses the SMD (Smart Motion Detection) function implemented by the DVR to categorize objects triggering motion detection and filter alarms generated by irrelevant targets, according to the manufacturer's documentation. AI by the camera supports perimeter and SMD protection, with AI perimeter protection performance by the camera covering all channels (4 targets/s), SMD function PLus by the DVR works on 4 channels (secondary filtering for people and motor vehicles, reduction of false alarms caused by leaves, rain and light changes), and SMD PLus by the camera supports all channels (8 targets/s); general alarms (motion detection, external camera alarm, PIR alarm), anomaly alarms (disk errors, missing disk, low space, IP/MAC conflicts, video loss, video tampering, offline camera), and smart alarms for perimeter protection and SMD PLus are also supported, with alarm links such as recording, snapshot, buzzer, log, preset, email and route.

Network parameters, interfaces and operating environment

The device supports HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, IP Search (for IP cameras, DVRs, NVS, etc.), P2P and Auto Registration, offers mobile access for iOS and Android, ONVIF 23.12 interoperability (Profiles T, S, G), CGI and SDK, and support for Chrome, IE, Safari, Edge and Firefox browsers, according to the manufacturer's documentation. The DVR features 1 RJ-45 10/100/1000 Mbps network port, 8 10/100 Mbps PoE ports, 1 HDMI and 1 VGA output, 2 USB ports 2.0 (front and rear), 1 RCA audio input and 1 RCA audio output, 53 V DC 1.81 A power supply, total DVR power consumption of less than 10 W (without HDD) and total PoE power of 72 W, with product dimensions of 260.0 mm × 232.5 mm × 47.6 mm and net weight of 0.89 kg, gross weight of 2.05 kg, operating temperature of -10 °C to +55 °C, storage temperature of -20 °C to +60 °C and operating humidity of 10-93% RH (non-condensing).

Technical data source:manufacturer's documentation DAHUA datasheet of model DHI-NVR2108HS-8P-4KS3 Dokumentacja producenta

FAQ - frequently asked questions

• How many IP channels does the DHI-NVR2108HS-8P-4KS3 DVR support?
  The DVR supports 8 access channels.
• What is the maximum resolution of IP cameras the device supports?
  The device supports IP cameras with up to 12 MP resolution.
• What is the maximum throughput with AI functions disabled?
  With AI disabled, the maximum throughput is 144 Mbps for input, 144 Mbps for recording and 72 Mbps for output.
• What is the maximum throughput with AI functions enabled?
  With AI enabled, the maximum throughput is 72 Mbps for input, 72 Mbps for recording, and 36 Mbps for output.
• What are the decoding capabilities with AI disabled?
  With AI disabled, the DVR supports 1 × 12 MP@30 fps, 1 × 8 MP@30 fps, 2 × 6 MP@30 fps, 2 × 5 MP@30 fps, 3 × 4 MP@30 fps or 6 × 1080p@30 fps.
• What are the decoding capabilities with AI enabled?
  With AI enabled, the DVR supports 1 × 8 MP@30 fps, 1 × 6 MP@30 fps, 1 × 5 MP@30 fps, 2 × 4 MP@30 fps or 4 × 1080p@30 fps.
• How many PoE ports does the DVR have and what is their power?
  The DVR has 8 PoE 10/100 Mbps ports compliant with IEEE 802.3af/at, with a total power of 72 watts and a maximum power of 25.5 watts per port.
• How many hard drives can be installed in the device and with what maximum capacity?
  The device has 1 SATA port, and each drive can have a capacity of up to 20 TB, with the limit depending on the ambient temperature.
• What video outputs are available on the DVR?
  The DVR has 1 HDMI output and 1 VGA output.
• What resolutions does the HDMI output support?
  The HDMI output supports resolutions of 3840 × 2160, 1920 × 1080, 1280 × 1024 and 1280 × 720.
• What resolutions does the VGA output support?
  The VGA output supports 1920 × 1080, 1280 × 1024, and 1280 × 720 resolutions.
• What screen division modes are available?
  Screen division modes 1, 4, 8 and 9 are available.
• What video compression formats are supported?
  Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG compression formats are supported.
• What audio compression formats are supported?
  G.711a, G.711u, PCM and G726 formats are supported.
• What are the main AI functions available on the DVR?
  SMD functions implemented by the DVR and perimeter protection and SMD functions implemented by the camera are available, including SMD PLus by the DVR and SMD PLus by the camera.
• What general and anomaly alarms does the DVR support?
  The DVR supports general alarms such as motion detection, external camera alarm and PIR alarm, and anomaly alarms including disk errors, missing disk, low space, network conflicts, video loss, video tampering and offline camera.
• What alarm links are available?
  Available alarm links include recording, snapshot, buzzer, log, preset, email, and tour.
• What are the power parameters of the DVR?
  The DVR is powered by 53 V DC at 1.81 A, and its power consumption without disk is less than 10 W.
• In what environmental conditions can the device work?
  The device can operate in temperatures from -10 °C to +55 °C and humidity from 10% to 93% RH without condensation.
• What standards and certifications does the recorder meet?
  The DVR meets CE-LVD requirements according to IEC 62368-1:2014 and CE-EMC requirements according to EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015 and EN 50130-4:2011+A1:2014.

The DHI-NVR2108HS-8P-4KS3 DVR provides up to 8 IP channels, high bandwidth, up to 4K decoding and 8-port PoE integration in a single compact 1U chassis. With support for SMD, perimeter protection, multiple network protocols, and extensive alarms and alarm links, the device enables the construction of flexible video surveillance systems, according to the manufacturer's documentation.
