Dahua XVR5104HS-I3 CCTV video recorder XVR compact WizSense SMD PLus 4 channels 5 MP Lite
- 4-channel digital video surveillance DVR XVR with AI WizSense and SMD functions PLus, HDCVI/AHD/TVI/CVBS/IP support and up to 5 MP Lite recording
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

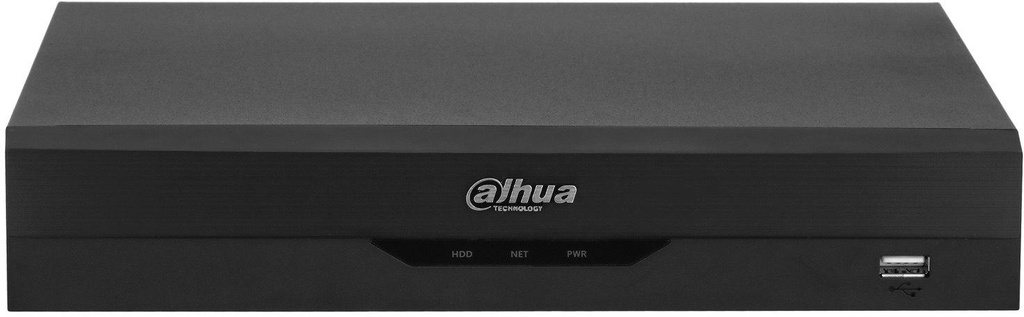

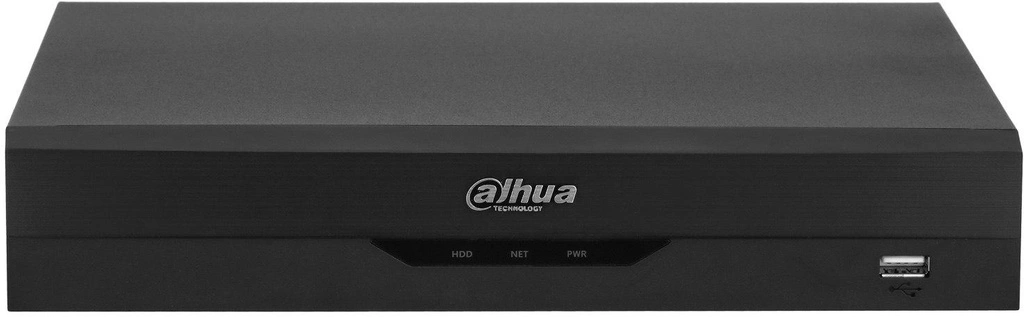

Dahua XVR5104HS-I3 - 4-channel digital recorder XVR with WizSense technology
The Dahua XVR5104HS-I3 is a 4-channel digital video recorder (XVR) that supports HDCVI, AHD, TVI, CVBS and IP signals and features WizSense artificial intelligence technology. The device offers advanced AI analytics, H.265+ compression and human and vehicle detection functions for efficient and intelligent monitoring.
- Supports 4 video channels + up to 6 IP channels
- WizSense intelligent AI-based functions
- H.265+ video compression for efficient recording
- Supports up to 5 MP Lite resolution
- HDCVI / AHD / TVI / CVBS / IP signal inputs
- Built-in SMD analysis PLus - human and vehicle recognition
Intelligent functions and WizSense system
The Dahua XVR5104HS-I3 DVR is part of the WizSense series, which uses artificial intelligence algorithms to classify objects and reduce false alarms. The SMD function PLus (Smart Motion Detection) allows it to distinguish between people and vehicles in real time, greatly enhancing the effectiveness of the surveillance system.
Video performance and support
The device supports up to 4 HDCVI channels with up to 5 MP Lite resolution and up to 6 IP cameras (max. 6 Mbps per channel). The H.265+ compression used significantly reduces bandwidth and memory consumption. The DVR offers HDMI and VGA outputs and support for Smart Search for recordings.
Technical parameters
| Parameter | Value |
|---|---|
| Model | XVR5104HS-I3 |
| Device type | 4-channel digital recorder XVR |
| Technology | WizSense (AI) |
| Supported signals | HDCVI / AHD / TVI / CVBS / IP |
| Max number of channels | 4 analog + 6 IP |
| Recording resolution | up to 5 MP Lite |
| Compression | H.265+, H.265, H.264+, H.264 |

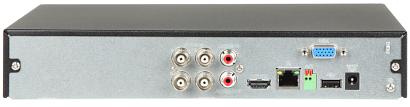

| Video inputs | 4 × BNC |
| Video outputs | 1 × HDMI, 1 × VGA |
| Audio input/output | 1 × RCA / 1 × RCA |
| Intelligent functions | SMD PLus (AI recognition of people and vehicles) |
| Network interface | 1 × RJ-45 (10/100 Mbps) |
| Storage | 1 × SATA up to 10 TB |
| Power supply | 12 V DC, ≤ 6 W |
| Operating temperature | -10°C to +45°C |
| Dimensions | 260 × 236 × 48 mm |
| Weight | approx. 1.1 kg |
Source of technical data: manufacturer's documentation of Dahua Technology, datasheet of XVR5104HS-I3 modelDokumentacja producenta
FAQ - frequently asked questions
- Does the Dahua XVR5104HS-I3 DVR support IP cameras?
Yes, it can support up to 6 IP cameras simultaneously. - What video signals are compatible?
HDCVI, AHD, TVI, CVBS and IP. - Does it have artificial intelligence functions?
Yes, under WizSense technology with SMD function PLus. - What maximum recording resolution does it support?
Up to 5 MP Lite per channel. - Does it support H.265+ compression?
Yes, to reduce bandwidth and storage space requirements. - How many analog channels can be connected?
Up to 4 analog HDCVI channels. - Does it have HDMI output?
Yes, HDMI and VGA are available as standard. - What is the maximum hard drive support?
1 SATA drive with a capacity of up to 10 TB. - Does the DVR have motion detection?
Yes, the SMD function PLus distinguish between human and vehicle movement. - Does the device support remote viewing?
Yes, via apLication mobile and Dahua DMSS software. - What is the power supply of the DVR?
12 V DC, maximum power consumption of 6 W. - What are its dimensions?
260 × 236 × 48 mm. - At what temperature can it operate?
From -10°C to +45°C. - Does it support smart search?
Yes, the Smart Search function makes it easy to browse the recordings. - Does it work with alarm systems?
Yes, it can interact with devices over the network.
The Dahua XVR5104HS-I3 is a modern, compact 4-channel DVR with WizSense technology, offering artificial intelligence features and the flexibility to support multiple video standards. The device is ideal for small to medium-sized surveillance systems requiring AI analysis and reliable performance.
