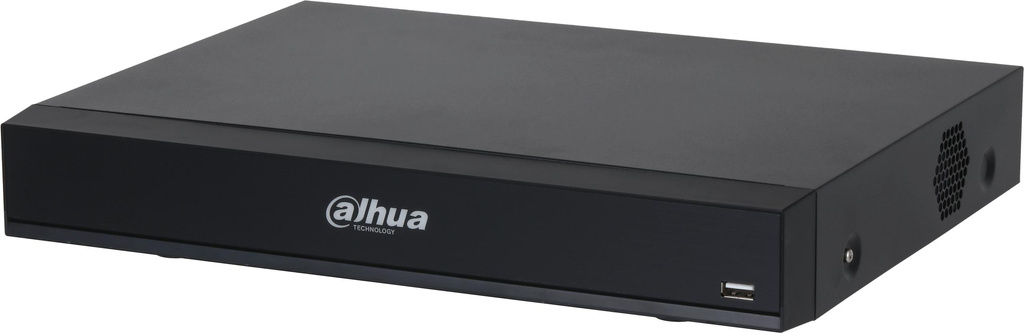

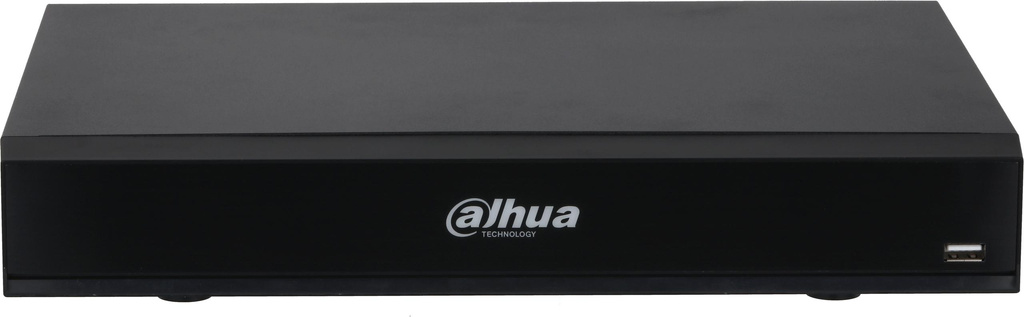

Dahua DH-XVR7108H-4K-I3 mini 1U WizSense 8CH 4K 1xSATA 16TB multisystem video recorder

Dahua DH-XVR7108H-4K-I3 8CH Penta-brid 4K Mini 1U 1HDD WizSense Digital Video Recorder

The DH-XVR7108H-4K-I3 digital video recorder is an 8-channel penta-brid 4K-enabled WizSense DVR for use with HDCVI, AHD, TVI, CVBS and IP cameras. The device offers advanced AI features, including SMD PLus, perimeter protection, face recognition and QuickPick 2.0, according to the manufacturer's documentation.

• 8 analog BNC inputs with HDCVI/AHD/TVI/CVBS auto-detect support.
• Support for up to 16 IP channels (8 IP by default + 8 after analog channel conversion) with 128 Mbps input bandwidth.
• HDMI output up to 3840 × 2160 and VGA output up to 1920 × 1080.
• AI support: SMD PLus, perimeter protection, face detection and recognition, QuickPick 2.0, Privacy Protection, EPTZ.
• 1 SATA connector for drive up to 16 TB (value dependent on ambient temperature).
• Mini 1U enclosure with one hard drive slot, according to manufacturer's documentation.

Description and features of the WizSense series

Dahua's WizSense series uses an independent AI chip and deep learning algorithms, focusing on human and vehicle detection with high accuracy. The DH-XVR7108H-4K-I3 DVR, part of the XVR7000-4K-I3 series, is designed to reduce false alarms and video surveillance costs, offering full-channel SMD PLus depending on the model and channel configuration.

Advanced AI and video analytics features

The device supports 2-channel QuickPick 2.0 for analog channels, enabling color-coded target search for clothing and vehicles, as well as additional types of clothing and headgear. The DVR provides up to 8 channels of perimeter protection for analog channels (General mode) and 2 channels in Advanced mode, as well as 2 channels of face detection and recognition and 1 channel of Privacy Protection, Irregular Black Block Masking, AI Video Quality Analytics, Scene Changing and EPTZ, according to the manufacturer's documentation.

Recording, playback and alarms

The DH-XVR7108H-4K-I3 supports general, alarm, motion detection, intelligent and POS recording modes, with playback of 1/4/9 channels simultaneously. Playback functions include instant pLayback, general pLayback, event pLayback, tag pLayback and smart pLayback. The alarm system includes general alarms (including motion detection, HDCVI alarm, external camera alarm, PIR), anomaly alarms (e.g. no disk, disk error, low space, network disconnection, IP/MAC conflict, video loss, video tampering, offline camera) and smart alarms (face detection, face recognition, perimeter protection, SMD PLus) with the ability to be associated with recording, panorama snapshot, IPC alarm output, audio, buzzer, logo, preset and email.

Specifications

Technical data source:manufacturer's documentation DAHUA datasheet of model DH-XVR7108H-4K-I3 Dokumentacja producenta

FAQ - frequently asked questions

• How many analog channels does the DH-XVR7108H-4K-I3 DVR support?
  The DVR supports 8 analog BNC inputs for HDCVI, AHD, TVI and CVBS cameras, according to the manufacturer's documentation.
• Does the device work with IP cameras?
  Yes, the DVR supports up to 16 IP channels, of which 8 IP channels are available by default, and another 8 after converting analog channels to IP.
• What maximum resolution of HDMI output does this model offer?
  The HDMI output supports up to 3840 × 2160 resolution, according to the manufacturer's documentation.
• What video standards are supported on the analog inputs?
  The DVR supports HDCVI, AHD, TVI and CVBS standards with automatic signal type detection.
• Does the device have SMD PLus function?
  Yes, the device supports SMD PLus by Recorder on 8 channels and SMD PLus by Camera on 16 channels.
• How many channels of perimeter protection are available?
  In General mode, 8 channels of perimeter protection with 10 IVS rules per channel are available, and in Advanced mode, 2 channels with 10 IVS rules per channel are available.
• Does the DVR have a face recognition function?
  Yes, the DH-XVR7108H-4K-I3 supports face recognition on 2 channels and a face database of up to 10 bases with a total of 20,000 images.
• What are the face detection capabilities of this model?
  The device supports face detection on 2 channels with up to 12 face images per second per channel and analysis of 6 face attributes.
• When IP extension mode is enabled, are all AI functions available?
  No, when IP extension is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection, QuickPick 2.0 and Privacy Protection functions cannot be used, according to the manufacturer's documentation.
• What video codecs are supported by the DVR?
  The device supports AI Coding, Smart H.265+, H.265, Smart H.264+ and H.264.
• How many SATA disk ports does the DH-XVR7108H-4K-I3 have?
  The DVR has 1 SATA disk port for up to 16TB, with the limit depending on the ambient temperature.
• What are the DVR's operating temperature capabilities?
  The operating temperature is -10 °C to +55 °C, and the storage temperature is -20 °C to +60 °C.
• Does the DVR support simultaneous and heterogeneous outputs on HDMI and VGA?
  Yes, simultaneous or heterogeneous video sources on VGA and HDMI outputs can be configured.
• What are the supported browsers for remote access?
  Supported browsers include Chrome, IE, Safari, Edge and Firefox.
• Is access from mobile devices possible?
  Yes, mobile access is possible from iOS and Android devices.
• What recording modes are available on this DVR?
  The available recording modes are general, alarm, motion detection, intelligent and POS.
• What are the compliance certifications of this device?
  The DVR has CE (CE-LVD and CE-EMC) and FCC Part 15 Subpart B certifications.
• How many USB ports does the DH-XVR7108H-4K-I3 have?
  The device has 2 USB ports: one front USB 2.0 and one rear USB 3.0.
• Is two-way audio communication possible?
  Yes, the device supports two-way audio, sharing the audio input with the first channel.
• What are the dimensions of the DVR's housing?
  The dimensions of the product are 325.0 mm × 254.3 mm × 55.0 mm (width × depth × height).

The DH-XVR7108H-4K-I3 DVR is used in video surveillance systems requiring support for multiple signal standards and resolutions up to 4K, according to the manufacturer's documentation. The device combines multi-channel recording functions with advanced AI analytics for accurate detection of people and vehicles and extensive alarm scenarios.
