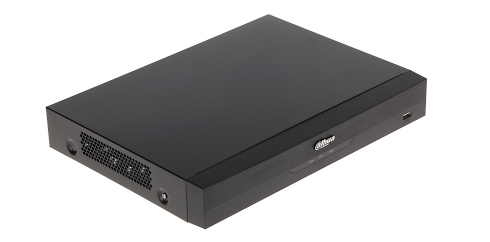

DAHUA XVR5104HE-I3 5W1 DVR 4 channels 6MP AI H.265+ Mini 1U
- DAHUA XVR5104HE-I3 DVR is a 5-in-1 device that supports up to 6 cameras with up to 6MPx resolution. It has HDMI and VGA connectors and supports hard drives up to 6TB. Ideal for surveillance systems.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
DH-XVR5104HE-I3 - 4-channel WizSense Penta-brid 5M-N/1080P Mini 1U 1HDD DVR
The DH-XVR5104HE-I3 DVR is a 4-channel WizSense penta-brid device that supports HDCVI, AHD, TVI, CVBS and IP signals in resolutions up to 5M-N/1080P. The device features artificial intelligence functions, including perimeter protection, SMD PLus and facial recognition, as well as support for H.265+/H.265 and AI Coding.
- 4 channels of analog BNC inputs with adaptive HDCVI/AHD/TVI/CVBS support.
- Supports up to 6 channels of IP cameras, with input bit rate up to 32 Mbps.
- AI Coding video compression, H.265+, H.265, H.264+, H.264.
- AI features: SMD PLus, perimeter protection, face detection and recognition.
- 1 SATA hard drive bay for up to 16 TB (capacity dependent on ambient temperature).
- HDMI and VGA video outputs with a maximum resolution of 1920 × 1080.
AI description and features
The DH-XVR5104HE-I3 is part of WizSense's XVR5000-I3 series, which features a standalone AI chip and deep learning algorithms focused on accurate human and vehicle recognition, according to the manufacturer's documentation.
The recorder supports face recognition, in which the features of captured faces are compared with a database to identify a person; up to 10 face databases with a total capacity of 10,000 images can be created.
SMD technology PLus allows categorizing objects that trigger motion detection and filtering out alarms caused by irrelevant targets, while the perimeter protection function automatically filters out false alarms caused by animals, leaf noise and strong light sources, among others.
Hardware characteristics and interfaces
The recorder runs on an industrial processor and Embedded Linux operating system, with support for a local GUI interface and web browser access according to the manufacturer's documentation.
The panel uses 4 BNC video inputs, HDMI output, VGA output, 4 RCA audio inputs and 4 coaxial audio inputs, one RCA audio output, 8 alarm inputs, 3 alarm outputs, RS-485 port for PTZ control, 2 USB 2.0 ports and RJ-45 10/100 Mbps network port, as well as power connector, power switch and ground terminal.
The device is powered by 12 V DC (1.5 A), its typical power consumption is less than 4 W, and the Mini 1U chassis is designed for desktop installation; product dimensions are 325.0 × 257.2 × 55.0 mm, and the net weight is 1.1 kg.
Network, recording and alarm functions
The DVR supports H.265+/H.265 compression and AI Coding, which reduces bandwidth and storage space requirements by more than 50% compared to H.265/H.264 without sacrificing decoding compatibility, providing clear details of people and vehicles.
Network protocols HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS and P2P are supported, with access from iOS and Android mobile devices and ONVIF 21.06 and CGI compatibility.
Recording modes include general, motion detection, smart, alarm, and POS, and playback can be in instant, general, event, tag, and smart (using face and motion detection) modes, with simultaneous playback of up to 4 channels.
The DVR supports general alarms (motion detection, video loss, tampering, local alarm), anomalies (disk missing, disk error, low capacity, offline, IP conflict, MAC conflict) and smart alarms (face detection, face recognition, perimeter protection) with the ability to be associated with recording, image capture, IPC alarm outputs, access control, voice messages, buzzer, event logging, PTZ presets and emailing.
Technical specifications
| Category | Parameter | Value |
|---|---|---|
| Model | Device model | DH-XVR5104HE-I3 |
| System | Main processor | Industrial grade processor |
| System | Operating system | Embedded Linux |
| System | Operating interface | Web interface (Web), local GUI |
| AI - perimeter protection | AI performance by DVR (number of channels) | Advanced model: 1 channel, 10 IVS rules per channel; General model: 2 channels, 10 IVS rules per channel |
| AI - face detection | Face attributes | Gender, age group, glasses, facial expression, mask, facial hair |
| AI - face detection | AI face detection performance according to DVR | 1 channel, up to 8 face images per second |
| AI - face recognition | Face database capacity | Up to 10 face bases and a total of 10,000 images |
| AI - face recognition | Performance of AI face recognition according to the recorder | 1 channel |
| AI - SMD PLus | SMD PLus according to DVR | 4 channels: secondary filtering of people and motor vehicles, reduction of false alarms due to leaves, rain and light changes |
| Video inputs | Analog camera input | 4 BNC channels, adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured |
| Video inputs | Supported CVI formats | 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps |
| Video inputs | Supported TVI formats | 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps |
| Video inputs | Supported AHD formats | 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps |
| Video inputs | Supported CVBS formats | PAL/NTSC |
| IP inputs | IP camera inputs | Up to 6 IPC channels |
| IP inputs | Channel conversion | 2 IP channels by default + 4 channels after converting analog channels to IP |
| IP inputs | Throughput | Input bit rate 32 Mbps, recording bit rate 32 Mbps, output bit rate 32 Mbps |
| IP inputs | Note on AI | When IP channels are added beyond the existing number of channels, AI functions (IVS, SMD, FACE) are disabled |
| Coding | Coding throughput - main stream | All channels: 5M-N (1-10 fps); 4M-N/1080P (1-15 fps); 1080N/720P/960H/D1/CIF (1-25/30 fps) |
| Encoding | Encoding throughput - sub-stream | D1/CIF (1-15 fps) |
| Encoding | Dual stream mode | Yes |
| Encoding | Video stream | 32 kbps - 6144 kbps |
| Audio | Audio sampling rate | 8 kHz, 16 bits |
| Audio | Audio bit rate | 64 kbps |
| Video outputs | Video outputs | 1 × HDMI, 1 × VGA |
| Video outputs | HDMI/VGA resolution | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Display | Image splitting modes (without IP extension mode) | 1/4 |
| Display | Image division modes (with IP expansion mode enabled) | 1/4/6 |
| Integration | Third-party camera access | ONVIF, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung |
| Compression | Video compression | AI Coding, H.265+, H.265, H.264+, H.264 |
| Compression | Audio compression | G.711a, G.711u, PCM |
| Networking | Network protocols | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P |
| Network | Mobile access | iOS, Android |
| Network | Interoperability | ONVIF 21.06, CGI Conformant |
| Networking | Supported browsers | Chrome, Internet EXPLORER 9 or later, Firefox |
| Network | Network mode | Single address mode |
| Recording and playback | Recording modes | General, motion detection, smart, alarm, POS |
| Recording and playback | Number of simultaneous playback channels | 1/4 |
| Recording and playback | Backup methods | USB device and network |
| Recording and playback | Playback modes | Instant playback, general playback, event playback, by tags, smart (face and motion detection) |
| Alarms | General alarms | Motion detection, video loss, tampering, local alarms |
| Alarms | Anomaly alarms | No disk, disk error, low capacity, offline, IP conflict, MAC conflict |
| Alarms | Smart alarms | Face detection, face recognition, perimeter protection |
| Alarms | Alarm links | Recording, photos (panoramic), external IPC alarm outputs, access controller, voice message, buzzer, log, preset, e-mail |
| Audio ports | Audio inputs | 4 RCA channels, 4 BNC channels (audio over coax) |
| Audio ports | Audio output | 1 RCA channel |
| Audio ports | Two-way audio | Yes, shared with the first audio channel |
| Alarm ports | Alarm inputs | 8 |
| Alarm ports | Alarm outputs | 3 |
| Data storage | HDD interface | 1 SATA port, up to 16 TB; maximum disk capacity depends on ambient temperature |
| Communication interfaces | RS-485 | 1 port for PTZ control |
| Communication interfaces | USB | 2 USB 2.0 ports |
| Video interfaces | HDMI | 1 port |
| Video interfaces | VGA | 1 port |
| Network interfaces | Network port | 1 port Ethernet 10/100 Mbps RJ-45 |
| Power supply | Power supply voltage | 12 V DC, 1.5 A |
| Power supply | Power consumption | Less than 4 W |
| Dimensions and weight | Net weight | 1.1 kg |
| Dimensions and weight | Gross weight | 1.8 kg |
| Dimensions and weight | Product dimensions (W × D × H) | 325.0 × 257.2 × 55.0 mm |
| Dimensions and weight | Package dimensions (W × D × H) | 372.0 × 117.0 × 308.0 mm |
| Operating environment | Operating temperature | From -10 °C to +55 °C |
| Operating environment | Operating humidity | 0%-90% (RH) |
| Installation | Installation type | Desktop |
| Certifications | FCC | FCC: Part 15 Subpart B |
| Certifications | CE-safety | CE-LVD: EN 60950-1/IEC 60950-1 |
| Certifications | CE - EMC | EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 |
Technical data source:manufacturer's documentation DAHUA datasheet of model DH-XVR5104HE-I3 Dokumentacja producenta
FAQ - frequently asked questions
- How many video channels does the DH-XVR5104HE-I3 DVR support?
The device supports 4 channels of BNC analog camera inputs and up to 6 channels of IP cameras according to the manufacturer's documentation. - What types of video signals are supported on the BNC inputs?
The BNC inputs support HDCVI, AHD, TVI and CVBS signals, with adaptive access in default mode. - What is the maximum resolution for CVI cameras on this DVR?
For CVI cameras, resolutions of 5 MP, 4 MP and 1080p at 25/30 fps, as well as 720p at 50/60 and 25/30 fps are supported. - What is the maximum hard drive capacity supported by the DH-XVR5104HE-I3?
The DVR supports one SATA hard drive with a capacity of up to 16 TB, with the maximum capacity depending on the ambient temperature according to the manufacturer's documentation. - Does the DVR support H.265+ compression?
Yes, the device supports AI Coding, H.265+, H.265, H.264+ and H.264 video compression. - What is the AI Coding function on this model?
AI Coding reduces bandwidth and storage space requirements by more than 50% compared to H.265/H.264 without sacrificing decoding compatibility, providing clear details of people and vehicles. - Does the DH-XVR5104HE-I3 have a facial recognition function?
Yes, the DVR supports face recognition, comparing captured faces with a face database to identify a person. - How many face images can be stored in the DVR base?
Up to 10 face databases with a total capacity of 10,000 face images can be created. - How many face images per second can face detection process?
Face detection can process up to 8 face images per second on a single channel. - What attributes of faces are analyzed by the DVR?
Attributes such as gender, age group, glasses, facial expression, mask, and facial hair are analyzed. - On how many channels is the SMD PLus function available?
SMD PLus function is available on 4 channels, where secondary filtering of people and motor vehicles is implemented to reduce false alarms. - What are the split screen modes on this DVR?
Without IP expansion mode enabled, splits 1 and 4 are available, while when IP expansion mode is enabled, splits 1, 4 and 6 are available. - What are the supported resolutions of HDMI and VGA outputs?
HDMI and VGA outputs support 1920 × 1080, 1280 × 1024 and 1280 × 720 resolutions. - Does the DVR support access from mobile devices?
Yes, the manufacturer's documentation states support for access from iOS and Android mobile devices. - What network protocols does the DH-XVR5104HE-I3 support?
Supported protocols include HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS and P2P. - How many alarm inputs and outputs does the DVR have?
The device has 8 alarm inputs and 3 alarm outputs. - What are the temperature and humidity ranges of the device?
The operating temperature range is -10 °C to +55 °C, and the operating humidity range is 0% to 90% RH. - What are the basic dimensions and weight of the recorder?
The dimensions of the product are 325.0 × 257.2 × 55.0 mm, and the net weight is 1.1 kg. - What certifications does this model have?
The DVR has FCC Part 15 Subpart B, CE-LVD EN 60950-1/IEC 60950-1, and EMC EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130 and EN 55024 certifications. - What is the typical power consumption of the DH-XVR5104HE-I3 DVR?
The power consumption of the device is less than 4 W according to the manufacturer's documentation.
The DH-XVR5104HE-I3 DVR is designed for video surveillance systems that require a combination of analog and IP inputs, as well as artificial intelligence functions for human and vehicle analysis.
The device combines support for multiple signal standards, advanced AI functions and flexible recording options for use in a variety of video surveillance installations, according to the manufacturer's documentation.
