Hikvision iDS-7108HUHI-M1/S - 8-channel 5 MP Mini 1U H.265 AcuSense DVR
The DVR allows recording video from 8 analog channels and up to 16 IP channels using H.265 Pro+ compression. The device supports up to 8 MP resolution, AcuSense functions based on deep learning technology, and various analog signal standards.
- 8 analog video channels and support for up to 16 IP cameras in Enhanced IP mode.
- Support for HDTVI, AHD, HDCVI and CVBS signals.
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding.
- Resolution up to 8 MP with up to 8 fps for analog channels.
- AcuSense features Motion Detection 2.0 and perimeter protection with people and vehicle classification.
- 4K HDMI output and 1 SATA connector with support for up to 10TB drive.
Smart functions and video analytics
The DVR uses Motion Detection 2.0 based on deep learning, active by default for all analog channels, enabling classification of targets as people or vehicles and significantly reducing false alarms caused by objects such as leaves or lights. The device supports quick search of recordings by object or event type, and offers perimeter protection (line crossing and intrusion detection) with analysis of people and vehicles for up to 4 channels. A face detection and capture function is available, including face image detection and face image search in recordings.
Video and audio inputs/outputs and network capabilities
The iDS-7108HUHI-M1/S has 8 analog BNC channels with coaxitron connection support and 4 IP channels (expandable to 12 channels), and in Enhanced IP mode, 8 IP channels (expandable to 16 channels), each up to 4 Mbps. The DVR supports HDTVI, AHD, HDCVI and CVBS signals and works with IP cameras in H.265+/H.265/H.264+/H.264 standards at resolutions up to 8 MP. For video display, there are HDMI (up to 4K 3840×2160/30 Hz) and VGA (up to 1920×1080/60 Hz) outputs, with simultaneous HDMI/VGA output, and recordings can be played back synchronously from up to 8 channels. The device provides 1 RCA audio input, 4 audio channels via coaxial cable, 1 RCA audio output and 1 two-way audio channel using audio input.
Compression, recording and interfaces
The recorder uses H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 video compression and G.711u audio compression. It supports recording resolutions of 8 MP, 5 MP, 3K, 4 MP, 3 MP, 1080p, 720p, WD1, 4CIF, VGA and CIF, with the main stream capable of 8 MP@8 fps./s, 3K@12 fps, 5 MP@12 fps, 4 MP@15 fps, 8 MP Lite@15 fps, 3 MP@18 fps, and 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (PAL) or 30 fps (NTSC). The auxiliary stream supports WD1/4CIF/CIF@25 fps (PAL) or 30 fps (NTSC), and the video bit rate can be set between 32 Kbps-10 Mbps with dual-stream support and video or video with audio. The total network bandwidth is 128 Mbps, with up to 64 remote connections available and a range of network protocols including TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS and ONVIF, as well as 1 RJ45 10/100/1000 Mbps network interface and the ability to connect to a Wi-Fi network via an external USB dongle.
Construction, power supply and physical interfaces
The DVR is equipped with 1 SATA interface with support for up to 10TB disk and two USB 2.0 ports on the rear panel. Power is supplied from an external 12 VDC, 2 A power supply, and power consumption does not exceed 10 W (without hard disk). The device operates at temperatures from -10 °C to +55 °C and humidity from 10% to 90%, and its dimensions are 200 × 200 × 48 mm with a weight not exceeding 1 kg (without HDD). The rear panel includes connectors: video and coaxial audio inputs, HDMI, VGA, AUDIO OUT (RCA), AUDIO IN (RCA), LAN port and USB port, 12 VDC power input and GND ground terminal; according to the manufacturer's documentation.
| Category | Parameter | Value |
|---|---|---|
| Model | Available model | iDS-7108HUHI-M1/S |
| Smart features | Motion Detection 2.0 | Deep learning-based motion detection 2.0, enabled by default for all analog channels, classification of people and vehicles, reduction of false alarms caused by leaves and lights, among others, quick search by object or event type |
| Smart functions | Perimeter Protection | Line crossing and intrusion detection, people and vehicle analysis for up to 4 channels |
| Smart functions | Facial Detection and Capture | Face image detection, face image search |
| IP video inputs | Standard IP | 4 channels (up to 12 channels) |
| IP video inputs | Enhanced IP mode | 8 channels (up to 16 channels), each up to 4 Mbps |
| IP video inputs | Max resolution | Up to 8 MP |
| IP video inputs | Supported IP camera codecs | H.265+/H.265/H.264+/H.264 |
| Analog video inputs | Number of channels | 8 channels |
| Analog video inputs | Interface | BNC (1.0 Vp-p, 75 Ω), support for coaxitron connection |
| HDTVI inputs | Resolutions and frame rates | 8 MP (3840 × 2160)@15 fps, 8 MP (3840 × 2160)@12 fps, 3K (2960 × 1665)@20 fps, 5 MP (2560 × 1944)@20 fps, 5 MP (2560 × 1944)@12 fps./s, 4 MP (2560 × 1440)@30 fps, 4 MP (2560 × 1440)@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
| AHD inputs | Resolutions and frame rates | 5 MP (2560 × 1944)@20 fps, 5 MP (2560 × 1944)@12 fps, 4 MP (2560 × 1440)@30 fps, 4 MP (2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
| HDCVI inputs | Resolutions and frame rates | 8 MP (3840 × 2160)@15 fps, 8 MP (3840 × 2160)@12 fps, 5 MP (2592 × 1944)@20 fps, 4 MP (2560 × 1440)@30 fps, 4 MP (2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
| CVBS inputs | Standard | PAL/NTSC |
| Video outputs | HDMI | 1 channel, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video outputs | VGA | 1 channel, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video outputs | Output mode | Simultaneous HDMI/VGA output |
| Audio inputs | Number and type | 1 channel, RCA (2.0 Vp-p, 1 kΩ) and 4 channels via coaxial cable |
| Audio outputs | Number and type | 1 channel, RCA (linear, 1 kΩ) |
| Two-way audio | Configuration | 1 channel, RCA (2.0 Vp-p, 1 kΩ) using audio input |
| Playback | Synchronous playback | Up to 8 channels |
| Video compression | Supported standards | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| Video compression | Encoding resolutions | 8 MP, 5 MP, 3K, 4 MP, 3 MP, 1080p, 720p, WD1, 4CIF, VGA, CIF |
| Main stream | Frame rate | 8 MP@8 fps, 3K@12 fps, 5 MP@12 fps, 4 MP@15 fps, 8 MP Lite@15 fps, 3 MP@18 fps, 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) |
| Auxiliary stream | Frame rate | WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Stream parameters | Bit rate | 32 Kbps to 10 Mbps |
| Stream parameters | Dual-stream | Supported |
| Stream parameters | Stream type | Video, Video & Audio |
| Audio compression | Standard | G.711u |
| Audio compression | Bitrate | 64 Kbps |
| Network | Total throughput | 128 Mbps |
| Network | Number of remote connections | 64 |
| Network | Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Networking | Network interface | 1 × RJ45 10/100/1000 Mbps self-adaptive |
| Network | Wi-Fi | Can be connected to a Wi-Fi network via a Wi-Fi dongle in the USB port |
| Data storage | SATA interface | 1 × SATA |
| Data storage | Max. disk capacity | Up to 10 TB per drive |
| Additional interfaces | USB | Rear panel: 2 × USB 2.0 |
| Power supply and environment | Power supply | 12 VDC, 2 A |
| Power supply and environment | Power consumption | ≤ 10 W (without HDD) |
| Power supply and environment | Operating temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Power supply and environment | Operating humidity | 10% to 90% |
| Dimensions and weight | Dimensions (S × G × W) | 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inches) |
| Dimensions and weight | Weight | ≤ 1 kg (without HDD, 2.2 lb.) |
| Notes | Motion Detection 2.0 and Perimeter Protection | Cannot be enabled simultaneously; enabling one function disables the other |
| Notes | Enhanced IP mode | May interfere with smart events (Motion Detection 2.0 and Perimeter Protection) or other functions; refer to manufacturer's documentation for user guide |

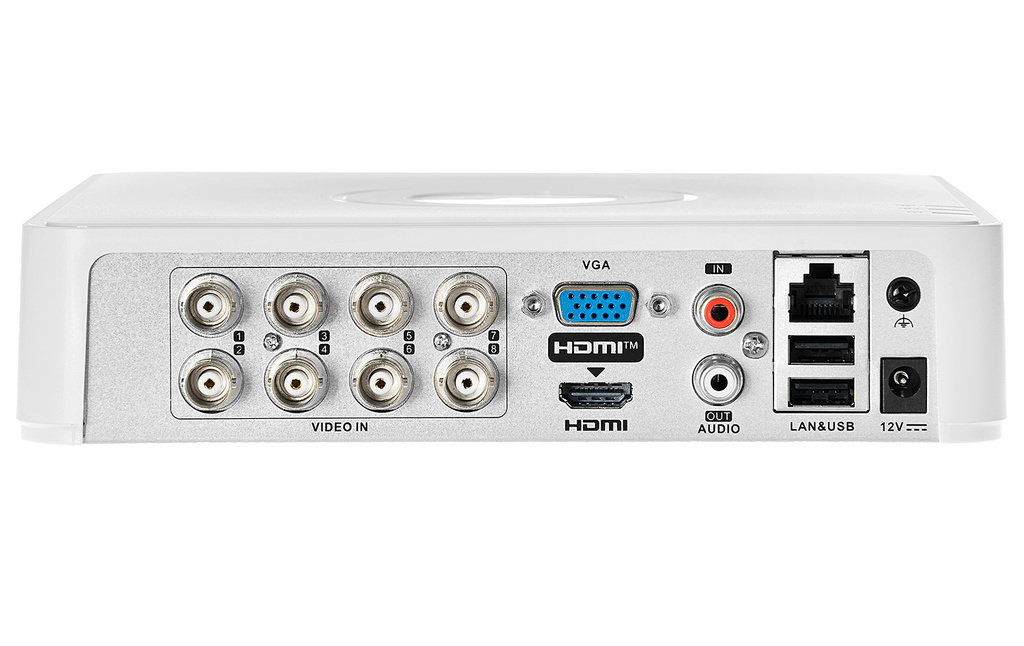

| Physical interface | Rear panel components | 1: video and coaxial audio inputs, 2: HDMI connector, 3: VGA connector, 4: AUDIO OUT (RCA), 5: AUDIO IN (RCA), 6: LAN and USB interface, 7: 12 VDC power input, 8: GND |
Source of technical data:manufacturer's documentation Hikvision datasheet of model iDS-7108HUHI-M1/S(E). manufacturer's documentation
FAQ - frequently asked questions
- How many analog channels does the iDS-7108HUHI-M1/S DVR support?
The DVR supports 8 analog channels. - How many IP cameras can be connected to the DVR in standard mode?
In standard mode, 4 IP cameras can be connected, expandable to 12 channels. - How many IP cameras can be connected in Enhanced IP mode?
In Enhanced IP mode, 8 IP cameras can be connected, expandable to 16 channels, each up to 4 Mbps. - What maximum video resolution does the DVR support?
The DVR supports up to 8 MP resolution. - What analog signal standards are supported?
HDTVI, AHD, HDCVI and CVBS signals are supported. - What video codecs are supported for recording?
The supported codecs are H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264. - Does the DVR support Motion Detection 2.0?
Yes, Motion Detection 2.0 based on deep learning is enabled by default for all analog channels. - What features does Motion Detection 2.0 offer?
Motion Detection 2.0 enables classification of objects as people or vehicles and reduces false alarms caused by foliage and lights, among other things. - Is a perimeter protection function available (Perimeter Protection)?
Yes, the DVR supports perimeter protection (line crossing and intrusion detection) with analysis of people and vehicles for up to 4 channels. - Can Motion Detection 2.0 and Perimeter Protection operate simultaneously?
No, Motion Detection 2.0 and Perimeter Protection cannot be enabled at the same time; enabling one function disables the other. - Does the DVR support facial detection?
Yes, Facial Detection and Capture is available, which includes face image detection and face image search. - What HDTVI signal resolutions are supported?
Supported resolutions include 8 MP (3840 × 2160)@15/12 fps, 3K (2960 × 1665)@20 fps, 5 MP (2560 × 1944)@20/12 fps, 4 MP (2560 × 1440)@30/25 fps, 3 MP@18 fps, 1080p@30/25 fps, and 720p@30/25 fps. - What AHD signal resolutions are supported?
Supported resolutions include 5 MP (2560 × 1944)@20/12 fps, 4 MP (2560 × 1440)@30/25 fps, 1080p@30/25 fps, and 720p@30/25 fps. - What are the maximum resolutions of HDMI and VGA outputs?
HDMI output supports up to 4K (3840 × 2160)/30 Hz, and VGA output supports up to 1920 × 1080/60 Hz. - How many audio channels can be connected to the DVR?
There are 1 RCA audio input and 4 channels of audio transmitted via coaxial cable. - Does the DVR support two-way audio communication?
Yes, 1 channel of two-way audio using RCA audio input is supported. - What is the maximum capacity of the supported hard drive?
1 SATA drive with a capacity of up to 10 TB is supported. - What network protocols are supported?
Supported protocols include TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS and ONVIF. - What is the power consumption of the DVR?
The power consumption is no more than 10 watts without the hard drive installed. - In what temperature range can the device operate?
The DVR can operate in a temperature range from -10 °C to +55 °C.
The Hikvision iDS-7108HUHI-M1/S DVR combines support for analog and IP signals with video analytics functions based on deep learning and advanced H.265 Pro+ compression. The device provides video recording up to 8 MP, flexible video, audio and network interfaces, and up to 10 TB of disk storage, according to the manufacturer's documentation.
