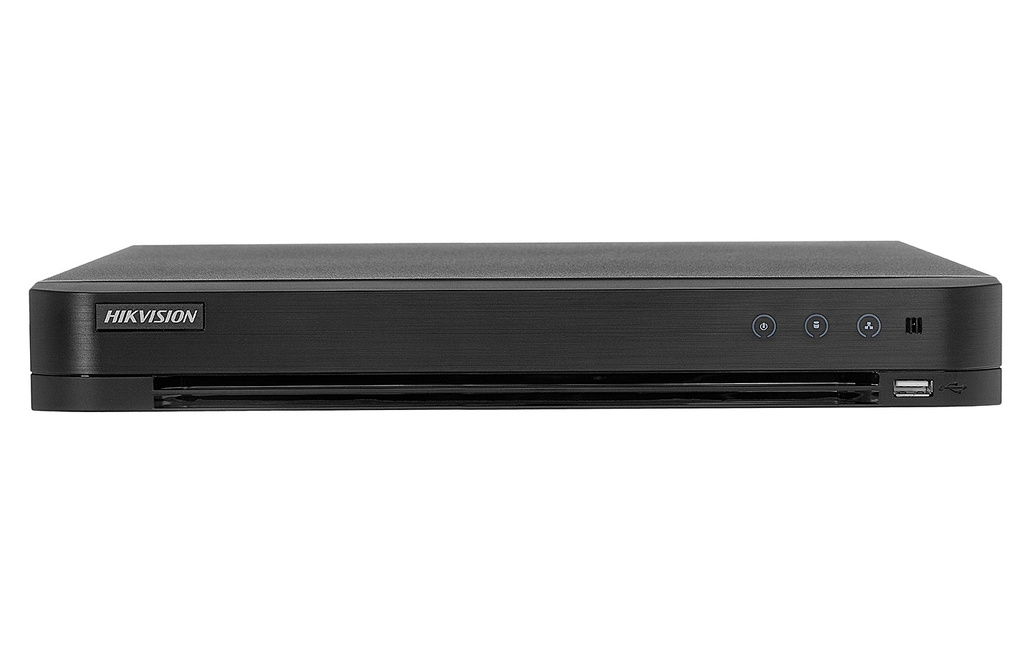

Hikvision iDS-7204HQHI-M1/XT 4-channel 1080P 1U H.265 AcuSense DVR
the iDS-7204HQHI-M1/XT is a 4-channel AcuSense DVR supporting up to 3K/5 MP Lite resolution and H.265 Pro+ compression. The device offers facial recognition, advanced perimeter protection based on deep learning algorithms, and motion detection 2.0 with human/vehicle classification.
- 4 video channels and 1 hard drive bay in 1U AcuSense DVR chassis
- Support for 1-channel face recognition or 2-channel perimeter protection based on deep learning
- Support for 2-channel AcuSearch technology
- Powerful H.265 Pro+ compression technology to reduce storage space requirements
- Capable of encoding up to 3K/5 MP Lite at 12 fps
- Adaptive inputs for 5 signals: HDTVI, AHD, HDCVI, CVBS, IP
Intelligent functions and video analysis
The iDS-7204HQHI-M1/XT DVR supports 1-channel face image comparison for analog HD camera and face image search using libraries of up to 16 face image databases, according to the manufacturer's documentation. Motion Detection 2.0 based on deep learning is enabled by default for all analog channels, enables classification of people and vehicles and significantly reduces false alarms caused by objects such as leaves or lights, and supports fast search by object or event type. The device provides perimeter protection for up to 2 channels with human/vehicle analysis based on deep learning algorithms, according to the manufacturer's documentation.
Video, audio and storage interfaces
The DVR has a 4-channel BNC interface (1.0 Vp-p, 75 Ω) for analog inputs, supporting coaxial connection and HDTVI, AHD, HDCVI and CVBS signals. Video output is provided by 1 HDMI channel and 1 VGA channel with simultaneous HDMI/VGA output and an additional 1-channel CVBS BNC output. The unit provides 1-channel audio input (optional up to 4-channel via coaxial cable), 1-channel audio output, and 1-channel two-way audio using the first audio input, as well as 1 SATA interface with up to 10TB of disk capacity, and 2 USB 2.0 ports (1 on the front, 1 on the back) for external storage, according to the manufacturer's documentation.
Network connectivity and operating conditions
The total throughput of the recorder is 72 Mbps, and the number of simultaneous remote connections reaches 32, according to the manufacturer's documentation. For network communications, the DVR uses an RJ-45 10/100 Mbps interface and supports TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS and ONVIF protocols. The device can be connected to a Wi-Fi network via an external adapter connected via a USB interface, and an RS-485 interface (semi-dupLeks) is provided for PTZ camera control; the recorder operates in a temperature range of -10°C to 55°C and humidity of 10% to 90% with a 12 V DC power supply, according to the manufacturer's documentation.
| Category | Parameter | Value |
|---|---|---|
| Model | Available model | iDS-7204HQHI-M1/XT |
| General | Device type | 1080P 4-channel 1U H.265 AcuSense DVR |
| Smart features | Face recognition - face image comparison | Face image comparison, face image search (1-channel face image comparison alarm for analog HD camera) |
| Smart functions | Face image library | Up to 16 face image libraries |
| Smart functions | Motion detection 2.0 | Motion detection 2.0 based on deep learning, enabled by default for all analog channels, classification of people and vehicles, reduction of false alarms caused by foliage and lights, among others, quick search by type of object or event |
| Smart functions | Perimeter protection | Up to 2 channels of human/vehicle analysis |
| Video inputs | Supported IP cameras | 2 channels (up to 6 channels), up to 6 MP resolution |
| Video inputs | Analog video input | 4-channel BNC interface (1.0 Vp-p, 75 Ω), supporting coaxial connection |
| Video inputs | HDTVI input | 3K (2960 × 1665)@25/20 fps, 3K (3328 × 1504)@20 fps, 5 MP (2560 × 1944)@20 fps, 4 MP (2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30 fps |
| Video inputs | AHD input | 5 MP (2560 × 1944)@20 fps, 4 MP (2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30 fps |
| Video inputs | HDCVI input | 3K (2880 × 1620)@25 fps, 5 MP (2592 × 1944)@20 fps, 4 MP (2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30 fps |
| Video inputs | CVBS input | PAL/NTSC |
| Video outputs | CVBS output | 1 channel, BNC (1.0 Vp-p, 75 Ω), PAL resolution: 704 × 576, NTSC: 704 × 480 |
| Video outputs | HDMI output | 1 channel, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video outputs | VGA output | 1 channel, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz; simultaneous HDMI/VGA output |
| Audio | Audio input | 1 channel (optional up to 4 channels), RCA (2.0 Vp-p, 1 kΩ); 4 channels via coaxial cable |
| Audio | Audio output | 1 channel, RCA (linear, 1 kΩ) |
| Audio | Two-way audio | 1 channel, RCA (2.0 Vp-p, 1 kΩ), using first audio input |
| Playback | Synchronous playback | 4 channels |
| Recording | Video compression | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| Recording | Encoding resolution (1080p Lite mode disabled) | 3K lite / 5 MP lite / 4 MP lite / 1080p / 720p / VGA / WD1 / 4CIF / CIF |
| Recording | Encoding resolution (1080p Lite mode on) | 3K lite / 5 MP lite / 4 MP lite / 1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF |
| Recording | Main stream - access to 3K stream (1080p lite mode disabled) | 3K lite@12 fps; 4 MP lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps |
| Recording | Main stream - access 5 MP stream | 5 MP lite@12 fps; 4 MP lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps |
| Recording | Main stream - access to 4 MP stream | 4 MP lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@25 fps (P) / 30 fps (N) |
| Recording | Main stream - access 1080p stream | 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P) / 30 fps (N) |
| Recording | Main stream - access 720p stream | 720p/VGA/WD1/4CIF/CIF@25 fps (P) |
| Recording | Main stream when 1080p Lite mode is enabled | 3K lite/5 MP lite@12 fps; 4 MP lite@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P) / 30 fps (N) |
| Recording | Additional frame rate parameters | WD1/4CIF@12 fps; CIF@25 fps (P) / 30 fps (N) |
| Recording | Video bitrate | 32 Kbps to 6 Mbps |
| Recording | Two streams | Main or sub stream support |
| Recording | Stream type | Video, Video & Audio |
| Audio | Audio compression | G.711u |
| Audio | Audio bitrate | 64 Kbps |
| Network | Remote connection | 32 |
| Network | Total throughput | 72 Mbps |
| Network | Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Networking | Network interface | 1 × RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Network | Wi-Fi | Can be connected to a Wi-Fi network using an adapter via USB interface |
| Interfaces | SATA | 1 SATA interface, up to 10 TB capacity per drive |
| Interfaces | Serial interface | RS-485 (halfdupLexowa) |
| Interfaces | USB interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
| Alarm interfaces | Alarm input/output | Not applicable (optional) |

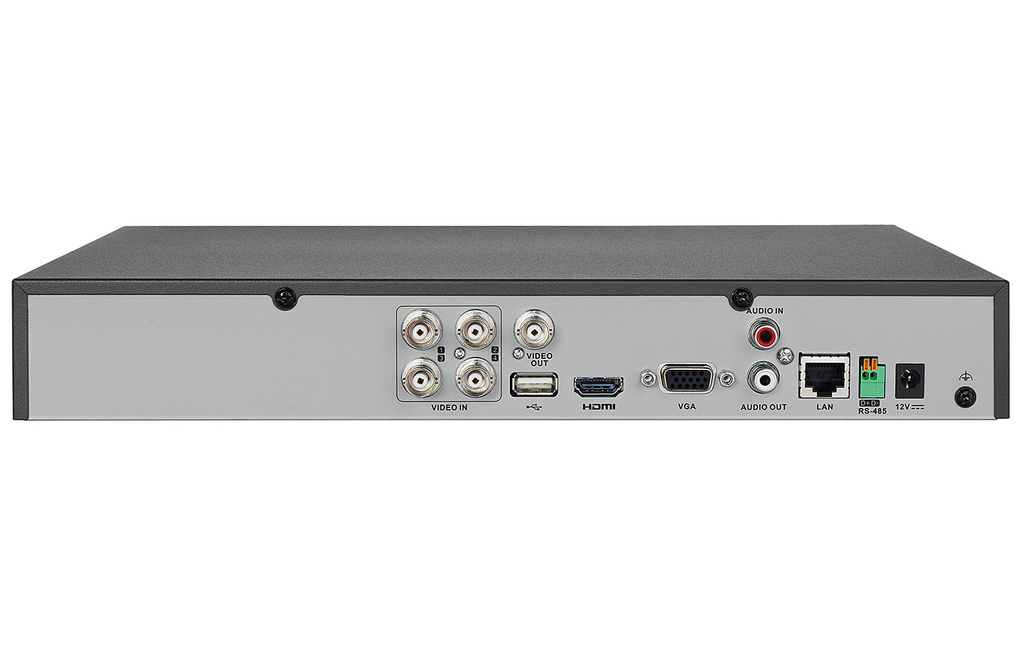

| Physical interface | Inputs and ports (description on rear panel) | 1 - video input; 2 - USB interface; 3 - video out; 4 - HDMI interface; 5 - VGA interface; 6 - alarm in/alarm out; 7 - audio out; 8 - LAN interface; 9 - audio in; 10 - 1 RS-485 interface; 11 - 12 VDC power supply; 12 - GND |
| Power supply | Power supply voltage | 12 V DC, 1.5 A |
| Power supply | Power consumption | ≤ 18 W |
| Operating conditions | Operating temperature | -10°C to 55°C (14°F to 131°F) |
| Operating conditions | Operating humidity | 10% to 90% |
| Dimensions and weight | Dimensions (W × L × H) | 319 × 236 × 48 mm (12.6 × 9.3 × 1.9 in) |
| Dimensions and weight | Weight | ≤ 1.16 kg (2.6 lb) |
Technical data source:Hikvision manufacturer's documentation datasheet of model iDS-7204HQHI-M1/XT Dokumentacja producenta
FAQ - frequently asked questions
- How many video channels does the iDS-7204HQHI-M1/XT DVR support?
The DVR supports 4 channels of analog video, according to the manufacturer's documentation. - What maximum recording resolution does this DVR support?
The device supports recording up to 3K lite and 5 MP lite, according to the manufacturer's documentation. - Does the DVR support facial recognition?
The DVR supports 1-channel face image comparison and face image search for analog HD camera, according to the manufacturer's documentation. - How many face image libraries can be configured on the DVR?
Up to 16 face image libraries can be configured, according to the manufacturer's documentation. - On how many channels is perimeter protection with human/vehicle analysis available?
Perimeter protection with human/vehicle analysis is available for up to 2 channels, according to the manufacturer's documentation. - Is motion detection 2.0 available on all channels?
Motion detection 2.0 based on deep learning is enabled by default for all analog channels, according to the manufacturer's documentation. - What analog video signals are supported by the DVR's inputs?
The inputs support HDTVI, AHD, HDCVI and CVBS PAL/NTSC signals, according to the manufacturer's documentation. - What resolution and frame rate does the HDMI output offer?
The HDMI output supports 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, and 1280 × 720/60 Hz resolutions, according to the manufacturer's documentation. - Does the DVR have simultaneous HDMI and VGA output?
The device offers simultaneous HDMI/VGA output, according to the manufacturer's documentation. - How many audio input channels are available?
1 RCA audio input is available (optional up to 4 channels via coaxial cable), according to the manufacturer's documentation. - Does the DVR support two-way audio?
Yes, the DVR supports 1-channel bidirectional audio using the first audio input, according to the manufacturer's documentation. - What video codecs are supported by the device?
The DVR supports H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 compression, according to the manufacturer's documentation. - What is the video bitrate range?
The video bitrate ranges from 32 Kbps to 6 Mbps, according to the manufacturer's documentation. - How many remote connections can be set up simultaneously?
Up to 32 remote connections can be set up, according to the manufacturer's documentation. - What is the total network bandwidth of the DVR?
The total bandwidth is 72 Mbps, according to the manufacturer's documentation. - Can the DVR be connected to a Wi-Fi network?
The DVR can be connected to a Wi-Fi network using an adapter connected via the USB interface, according to the manufacturer's documentation. - What hard drive capacity does the SATA interface support?
The SATA interface supports up to 10 TB of capacity per drive, according to the manufacturer's documentation. - What are the power supply requirements?
The device requires a 12 V DC, 1.5 A power supply, according to the manufacturer's documentation. - In what temperature range can the recorder operate?
The operating temperature range is -10°C to 55°C, according to the manufacturer's documentation. - What are the dimensions of the iDS-7204HQHI-M1/XT?
The dimensions of the device are 319 × 236 × 48 mm, according to the manufacturer's documentation.
The Hikvision iDS-7204HQHI-M1/XT DVR provides support for 4 analog channels with face recognition, motion detection 2.0 and perimeter protection, according to the manufacturer's documentation. With H.265 Pro+ compression, support for multiple analog standards and a network interface with a wide list of protocols, the device enables efficient recording and remote access to the surveillance system, according to the manufacturer's documentation.
