Hikvision iDS-7204HUHI-M1/X 4-ch 5 MP 1U H.265 AcuSense DVR

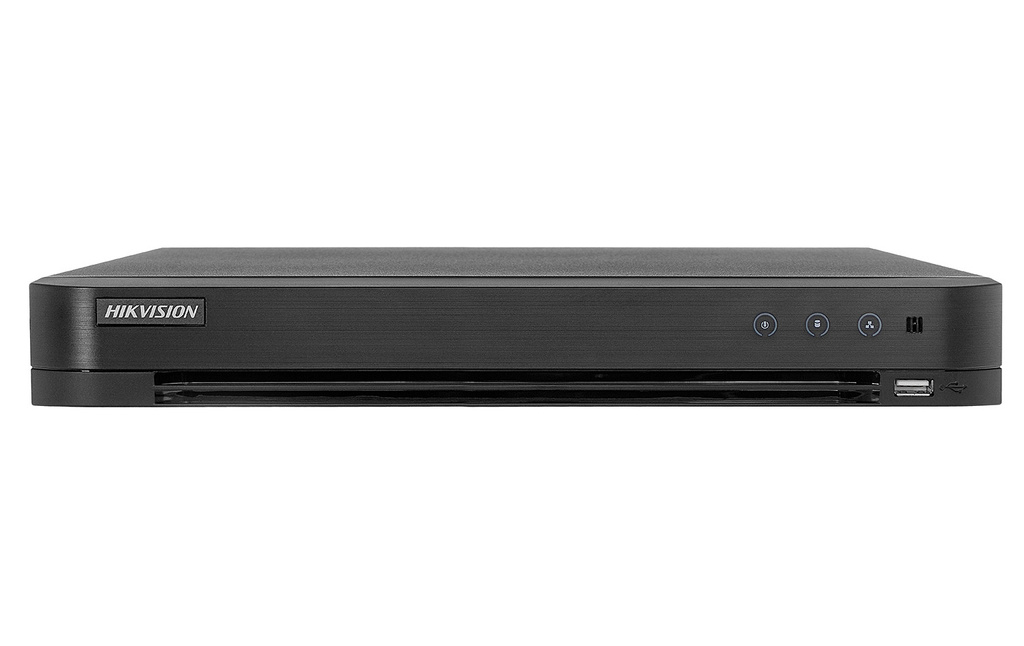

The Hikvision iDS-7204HUHI-M1/X is a 4-channel 5 MP 1U AcuSense DVR that supports HDTVI/AHD/CVI/CVBS/IP signals. The device offers facial recognition, perimeter protection and advanced video recording capabilities, according to the manufacturer's documentation.
- 4 analog channels and 1 hard drive bay in 1U AcuSense DVR chassis
- Support for 2 channels of facial recognition or 4 channels of advanced perimeter protection based on Deep Learning algorithm
- Support for 4 channels of AcuSearch technology
- Capable of encoding up to 4K/8MP @ 8 fps (1 channel) and 3K/5MP @ 12 fps
- Up to 8 channels of IP camera inputs, each up to 8MP
- Adaptive input of 5 signals (HDTVI/AHD/CVI/CVBS/IP)
Functional description of the DVR
The iDS-7204HUHI-M1/X DVR is an AcuSense DVR equipped with face recognition, perimeter protection and AcuSearch event search functions, according to the manufacturer's documentation. The device supports efficient H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 compression, HDTVI/AHD/CVI/CVBS analog channels and IP channels up to 8 MP resolution, and provides simultaneous HDMI and VGA outputs and CVBS output.
Smart and video functions
The DVR supports up to 16 face image libraries and face image comparison and search with alarm capability from 2 channels of image comparison (HD analog camera), according to the manufacturer's documentation. Perimeter Protection supports human and vehicle analysis for up to 4 channels, and All channels Motion Detection technology is available for all channels, while supporting multiple video input modes and HDMI, VGA and CVBS outputs.
Specifications
| Model | iDS-7204HUHI-M1/X |
| Device category | 4-ch 5 MP 1U H.265 AcuSense DVR |
| Key Features | 4 channels and 1 HDD 1U AcuSense DVR; Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm; Support 4-ch AcuSearch Technology; Encoding ability up to 4K/8MP @ 8fps (1-ch); 3K/5MP @12fps; Up to 8 channels IP camera inputs, each channel up to 8MP; 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP); Support All channels Motion Detection technology; Efficient H.265 pro+ compression technology |
| Face Picture Library | Up to 16 face picture libraries |
| Face Picture Comparison | Face picture comparison, face picture search; 2-ch face picture comparison alarm (HD analog camera) |
| Human/Vehicle Analysis (Perimeter Protection) | Up to 4-ch |
| IP Video Input | 2-ch (up to 6-ch); Up to 8 MP resolution; IP enhanced mode on: 4-ch (up to 8-ch), each up to 4 Mbps; Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 4-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDMI Output | 1-ch, 2K (2560 × 1440)/60Hz; 1920 × 1080/60Hz; 1280 × 1024/60Hz; 1280 × 720/60Hz; HDMI/VGA simultaneous output |
| VGA Output | 1-ch, 1920 × 1080/60Hz; 1280 × 1024/60Hz; 1280 × 720/60Hz; HDMI/VGA simultaneous output |
| CVBS Input | PAL/NTSC |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Synchronous PLayback | 4-ch |
| HDTVI Input | 8 MP (3840 × 2160)@12/15 fps; 3K (2960 × 1665)@25/20 fps; 3K (3328 × 1504)@20 fps; 5 MP (2560 × 1944)@20 fps; 4 MP (2560 × 1440)@25/30 fps; 1080P@25/30 fps; 720P@25/30 fps |
| AHD Input | 5 MP (2560 × 1944)@20 fps; 4 MP (2560 × 1440)@25/30 fps; 1080P@25/30 fps; 720P@25/30 fps |
| HDCVI Input | 8 MP (3840 × 2160)@12/15 fps; 3K (2880 × 1620)@25 fps; 5 MP (2592 × 1944)@20 fps; 4 MP (2560 × 1440)@25/30 fps; 1080P@25/30 fps; 720P@25/30 fps |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution (main stream) | 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps; 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N); *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4. |
| Sub-stream | WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Video Bitrate | 32 Kbps to 10 Mbps |
| Dual-stream | Support main stream or sub stream |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Total Bandwidth | 96 Mbps |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Remote Connection | 32 |
| Network Interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| SATA | 1 SATA interface |
| Disk capacity | Up to 12 TB capacity for each disk |
| Serial Interface | RS-485 (half-dupLex) |
| USB Interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm In/Out | N/A |
| Power SuppLy | 12 VDC, 1.5 A |
| Consumption | ≤ 10 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 319 × 235 × 48 mm (12.6 × 9.3 × 1.9 inch) |
| Weight | ≤ 1.16 kg (2.6 lb) |
| Physical Interface - numbering | No. 1: VIDEO IN; No. 2: USB interface; No. 3: VIDEO OUT; No. 4: HDMI interface; No. 5: VGA interface; No. 6: AUDIO OUT, RCA connector; No. 7: AUDIO IN, RCA connector; No. 8: LAN network interface; No. 9: RS-485 serial interface; No. 10: 12 VDC power input; No. 11: GND |
| Available model | iDS-7204HUHI-M1/X |
Technical data source:manufacturer Hikvision documentation datasheet of model iDS-7204HUHI-M1/X
FAQ - frequently asked questions
- How many analog channels does the iDS-7204HUHI-M1/X DVR support?
The DVR supports 4 analog channels. - How many IP channels can be connected to the DVR?
By default there are 2 IP channels (up to 6 channels), and in IP enhanced mode there are 4 channels (up to 8 channels), each up to 4 Mbps. - What is the maximum resolution of IP cameras supported by the DVR?
The maximum resolution of IP cameras is 8 MP. - What analog video signals are supported?
The DVR supports HDTVI, AHD, HDCVI, CVBS and IP signals. - What face recognition functions does the device have?
The device supports up to 16 face image libraries, face image comparison and search, and alarm from 2 channels of HD analog camera image comparison. - How many channels of perimeter security (Human/Vehicle Analysis) are available?
Human and vehicle analysis of up to 4 channels is available. - What resolution and frame rate does the HDTVI input support?
HDTVI input supports 8 MP (3840 × 2160)@12/15 fps, 3K (2960 × 1665)@25/20 fps, 3K (3328 × 1504)@20 fps, 5 MP (2560 × 1944)@20 fps, 4 MP (2560 × 1440)@25/30 fps, 1080P@25/30 fps, and 720P@25/30 fps. - What resolutions does the AHD input support?
AHD input supports 5 MP (2560 × 1944)@20 fps, 4 MP (2560 × 1440)@25/30 fps, 1080P@25/30 fps, and 720P@25/30 fps. - What resolutions does the HDCVI input support?
HDCVI input supports 8 MP (3840 × 2160)@12/15 fps, 3K (2880 × 1620)@25 fps, 5 MP (2592 × 1944)@20 fps, 4 MP (2560 × 1440)@25/30 fps, 1080P@25/30 fps, and 720P@25/30 fps. - What video output connectors are available?
HDMI, VGA and CVBS outputs are available. - What resolutions does the HDMI output support?
HDMI output supports 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz and 1280 × 720/60Hz. - What resolutions does the VGA output support?
VGA output supports 1920 × 1080/60Hz, 1280 × 1024/60Hz and 1280 × 720/60Hz. - How many channels of synchronous playback are available?
4-channel synchronous playback is available. - What video codecs are supported for recording?
H.265 Pro+, H.265 Pro, H.265, H.265, H.264+ and H.264 are supported. - What is the video stream bit rate range?
The video stream bit rate range is from 32 Kbps to 10 Mbps. - What network protocols are supported?
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS and ONVIF are supported. - How many simultaneous remote connections does the DVR support?
The DVR supports up to 32 remote connections. - What is the maximum capacity of the hard drive?
The maximum capacity is up to 12 TB for each drive. - What USB interfaces are available?
There is 1 × USB 2.0 on the front panel and 1 × USB 3.0 on the rear panel. - What is the operating temperature range of the device?
The operating temperature range is -10 °C to 55 °C (14 °F to 131 °F).
The Hikvision iDS-7204HUHI-M1/X DVR provides support for multiple video technologies and intelligent functions such as face recognition and people/vehicle analysis, according to the manufacturer's documentation. The device offers flexible configuration of IP and analog channels, a wide range of supported resolutions, and efficient video compression to build advanced surveillance systems.
