Hikvision iDS-7208HUHI-M1/X 8-ch 5 MP 1U H.265 AcuSense DVR
The Hikvision iDS-7208HUHI-M1/X is an 8-channel 5 MP AcuSense DVR in a 1U chassis with intelligent features based on deep learning algorithms. The unit supports analog HDTVI/AHD/CVI/CVBS and IP inputs up to 8 MP, providing advanced facial recognition and perimeter security features.
- 8 analog video channels and 1 hard drive bay in a 1U AcuSense DVR chassis.
- Support for up to 4 channels of facial recognition or 8 channels of advanced perimeter protection based on Deep Learning algorithm.
- Support for 8-channel AcuSearch technology.
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression with the ability to enable H.265 Pro+ to improve encoding efficiency.
- Capable of encoding up to 4K/8 MP @ 8 fps, 3K/5 MP @ 12 fps and recording up to 8 MP resolution.
- Adaptive 5-signal inputs (HDTVI/AHD/CVI/CVBS/IP) with support for up to 16 IP channels (each up to 8 MP).
AcuSense smart features and face recognition
The iDS-7208HUHI-M1/X DVR supports up to 4 channels of face image comparison alarm from HD analog cameras and up to 4 channels of face image capture, as well as face detection, face image search and comparison functions based on face image libraries. The device supports up to 16 face image libraries, with hard drive failure not resulting in loss of library data, as the library is protected by a copy in HDD memory and flash memory, according to the manufacturer's documentation.
Video and audio inputs/outputs and network functions
This model has an 8-channel analog BNC video input (1.0 Vp-p, 75 ohm) with coaxitron connection support and support for HDTVI, AHD and HDCVI signals in resolutions up to 8 MP, as well as an 8-channel IP input (expandable to 16 IP channels, each up to 4 Mbps and up to 8 MP). The DVR offers 1-channel HDMI output up to 4K (3840 × 2160) at 30 Hz and 1-channel VGA output up to 1920 × 1080 at 60 Hz, with simultaneous HDMI/VGA output, as well as 1-channel BNC CVBS output with PAL 704 × 576 or NTSC 704 × 480 resolution and 8-channel synchronous playback. There are 1-channel RCA audio input (2.0 Vp-p, 1 kΩ) and 8-channel coaxial cable audio, 1-channel RCA audio output (line-level, 1 kΩ) and 1-channel two-way audio (RCA, using the first audio input), and in terms of networking, the DVR supports TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF and ISUP protocols, according to the manufacturer's documentation.
Technical specifications and operating parameters

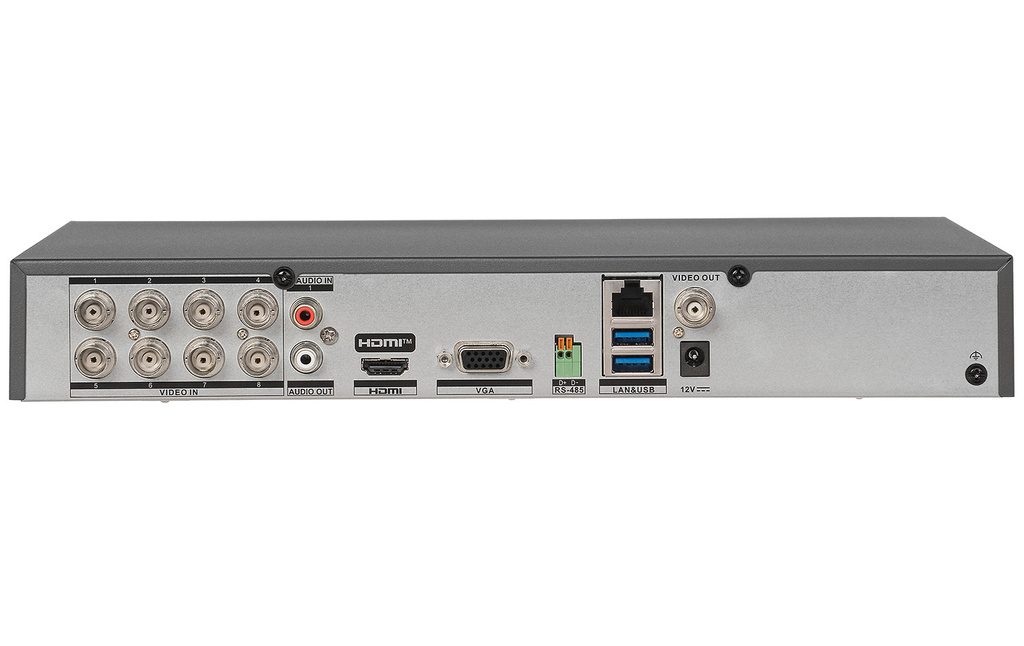

The DVR provides a total network bandwidth of 256 Mbps, decoding capacity of up to 24 1080P@30fps channels, and the ability to remotely connect up to 64 clients. It is equipped with 1 SATA interface with support for up to 12 TB disk, RS-485 interface (half-dupLex), 1 USB 2.0 port on the front panel and 1 USB 3.0 port on the rear panel, 12 VDC 2 A power supply, power consumption ≤ 10 W (without HDD), and operation in a temperature range of -10 °C to 55 °C and humidity of 10% to 90%. The enclosure, which measures 319 × 240 × 48 mm and weighs ≤ 2 kg, includes connectors on the rear panel for video input, audio output, HDMI, VGA, RS-485, LAN/USB interface, 12 VDC power supply, GND, audio input and video output, among others, according to the manufacturer's documentation.
| Category | Parameter | Value |
|---|---|---|
| Model | Available model | iDS-7208HUHI-M1/X |
| General | Device type | 8-ch 5 MP 1U H.265 AcuSense DVR |
| General | Enclosure | 1U |
| General | Number of analog channels | 8-ch |
| General | IP camera inputs | 8-ch (up to 16-ch), each channel up to 8 MP; each up to 4 Mbps |
| General | Supported signal formats | 5 signals adaptively: HDTVI/AHD/CVI/CVBS/IP |
| Smart features | Motion Detection 2.0 | Up to 8 channels (analog channels) |
| Smart functions | Perimeter Protection | Up to 8 channels (advanced model, analog channels) |
| Smart functions | Face recognition | Up to 4 channels (advanced model, analog channels) |
| Smart functions | Smart pLayback | Supported (smart pLayback for enhanced playback efficiency) |
| Smart functions | AcuSearch | Supports 8 channels of AcuSearch Technology |
| Face recognition | Face photo library | Up to 16 face photo libraries |
| Face recognition | Library data protection | HDD damage does not cause loss of library data; library is archived on HDD and flash memory |
| Face recognition | Face comparison alarm | 4-ch face picture comparison alarm (HD analog camera) |
| Face detection | Face detection and capture | Face picture detection, face picture search; 4-ch face picture capture |
| Video and audio | IP video input | 8-ch (up to 16-ch), each up to 4 Mbps; supports H.265+/H.265/H.264+/H.264 IP cameras |
| Video and audio | Analog video input | 8-ch, BNC (1.0 Vp-p, 75 Ω), support for coaxitron connection |
| Video and audio | HDTVI input | 8 MP (3840 × 2160)@12/15 fps; 3K (2960 × 1665)@25/20 fps; 3K (3328 × 1504)@20 fps; 5 MP (2560 × 1944)@20 fps; 4 MP (2560 × 1440)@25/30 fps; 1080P@25/30 fps; 720P@25/30 fps |
| Video and audio | AHD input | 5 MP (2560 × 1944)@20 fps; 4 MP (2560 × 1440)@25/30 fps; 1080P@25/30 fps; 720P@25/30 fps |
| Video and audio | HDCVI input | 8 MP (3840 × 2160)@12/15 fps; 3K (2880 × 1620)@25 fps; 5 MP (2592 × 1944)@20 fps; 4 MP (2560 × 1440)@25/30 fps; 1080P@25/30 fps; 720P@25/30 fps |
| Video and audio | HDMI output | 1-ch, 4K (3840 × 2160)/30 Hz; 2K (2560 × 1440)/60 Hz; 1920 × 1080/60 Hz; 1280 × 1024/60 Hz; 1280 × 720/60 Hz; HDMI/VGA output simultaneous |
| Video and audio | VGA output | 1-ch, 1920 × 1080/60 Hz; 1280 × 1024/60 Hz; 1280 × 720/60 Hz; HDMI/VGA simultaneous output |
| Video and audio | CVBS input | PAL/NTSC |
| Video and audio | CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω); resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Video and audio | Synchronous playback | 8-ch |
| Audio | Audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ); 8-ch audio via coaxial cable |
| Audio | Audio output | 1-ch, RCA (line-level, 1 kΩ) |
| Audio | Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 kΩ), uses first audio input |
| Compression and recording | Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Compression and recording | Encoding resolutions | 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Compression and recording | Main stream - frame rate | 8 MP@8 fps; 3K@12 fps; 5 MP@12 fps; 4 MP@15 fps; 8 MP Lite@15 fps; 1080p/720p@25 fps (P)/30 fps (N) |
| Compression and recording | Auxiliary stream - frame rate | WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Compression and recording | Video bitrate | 32 Kbps to 10 Mbps |
| Compression and recording | Dual stream | Support for main or auxiliary stream |
| Compression and recording | Stream type | Video; Video and audio |
| Audio | Audio compression | G.711u |
| Audio | Audio bitrate | 64 Kbps |
| Decoding | Decoding capability | Up to 24-ch 1080P@30fps |
| Network | Total throughput | 256 Mbps |
| Network | Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP |
| Networking | Number of remote connections | 64 |
| Network | Network interface | 1 × RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Interfaces | SATA | 1 SATA interface |
| Interfaces | Disk capacity | Up to 12 TB for each drive |
| Interfaces | Serial interface | RS-485 (half-dupLex) |
| Interfaces | USB interface | Front panel: 1 × USB 2.0; rear panel: 1 × USB 3.0 |
| Alarm | Alarm inputs/outputs | N/A (optionally supported) |
| Power supply and environment | Power supply | 12 VDC, 2 A |
| Power supply and environment | Power consumption | ≤ 10 W (without HDD) |
| Operating environment | Operating temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Operating environment | Operating humidity | 10% to 90% |
| Dimensions and weight | Dimensions (S × G × W) | 319 × 240 × 48 mm (12.6 × 9.4 × 1.9 in) |
| Dimensions and weight | Weight | ≤ 2 kg (4.4 lb) |
Technical data source:manufacturer's documentation Hikvision datasheet for model iDS-7208HUHI-M1/X. Manufacturer's documentation
FAQ - frequently asked questions
- How many video channels does the iDS-7208HUHI-M1/X DVR support?
The DVR supports 8 analog video channels and 8-channel IP inputs, expandable to 16 IP channels, according to the manufacturer's documentation. - What video signal formats are supported by this DVR?
The device adaptively supports 5 signals: HDTVI, AHD, HDCVI, CVBS and IP. - Up to what maximum resolution can the DVR record?
The DVR can record up to 8 MP resolution. - What is the maximum resolution and frame rate of HDMI output?
The HDMI output supports a maximum resolution of 4K (3840 × 2160) at 30 Hz. - Are HDMI and VGA outputs available simultaneously?
Yes, the DVR supports simultaneous HDMI/VGA output. - How many face photo libraries can be configured on the DVR?
Up to 16 face photo libraries can be configured. - What happens to the face photo library if the HDD is damaged?
HDD damage does not cause loss of library data, as the library is protected by a copy on the HDD and in flash memory, according to the manufacturer's documentation. - How many channels of face comparison alarm are supported?
The DVR supports 4 channels of face comparison alarm from HD analog cameras. - What is the maximum number of Perimeter Protection channels?
Up to 8 channels of perimeter protection on analog channels in the advanced model. - How many face recognition channels are available?
Up to 4 face recognition channels are available on analog channels in the advanced model. - What is the maximum decoding capacity of the DVR?
The DVR can decode up to 24 channels of 1080P@30fps. - What video codecs are supported for recording?
H.265 Pro+, H.265 Pro, H.265, H.265, H.264+ and H.264 are supported. - What video encoding resolutions are available?
The resolutions available are 8 MP, 5 MP, 3K, 4 MP, 3 MP, 1080p, 720p, WD1, 4CIF, VGA, and CIF. - What is the total network bandwidth of the DVR?
The total network bandwidth is 256 Mbps. - How many remote users can simultaneously connect to the DVR?
Up to 64 remote connections are possible. - What network protocols are supported?
The supported protocols are TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF and ISUP. - How many hard drives can be installed and what is the maximum capacity?
The DVR has 1 SATA interface with support for up to 12 TB of disk capacity. - What is the power supply and power consumption of the DVR?
The power supply is 12 VDC 2 A, and the power consumption is ≤ 10 W (without HDD). - In what temperature range can the DVR operate?
The operating temperature range is -10 °C to 55 °C. - What are the dimensions and weight of the device?
The dimensions are 319 × 240 × 48 mm, and the weight is less than or equal to 2 kg.
The Hikvision iDS-7208HUHI-M1/X DVR is designed for video surveillance systems requiring support for multiple signal formats and advanced video analytics based on face recognition and perimeter protection. The device provides high recording resolution, flexible video and network interfaces, and efficient H.265 Pro+ compression for easy integration in complex installations.
