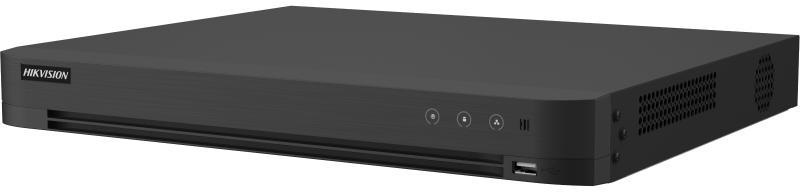

Hikvision iDS-7216HUHI-M2/X 16-channel 5 MP 1U H.265 AcuSense DVR
The iDS-7216HUHI-M2/X is a 16-channel AcuSense DVR that supports HDTVI/AHD/CVI/CVBS/IP signals and H.265 Pro+ compression. The device offers Deep Learning features, including Motion Detection 2.0, perimeter protection and face recognition, according to the manufacturer's documentation.
- 16 analog channels expandable to 32 IP channels, each IP channel up to 8 MP.
- Support for 4-channel facial recognition or 8-channel advanced perimeter protection in the advanced model.
- Support for AcuSearch technology up to 8 channels.
- Capable of encoding up to 8 MP/4K@8 fps and 5 MP/3K@12 fps.
- Adaptive input of 5 signals: HDTVI, AHD, HDCVI, CVBS, IP.
- Decoding capacity of up to 24 channels 1080P@30 fps.
Intelligent functions and video analytics
The iDS-7216HUHI-M2/X DVR offers up to 16 channels of Motion Detection 2.0 for analog channels, with object classification into people and vehicles and reduction of false alarms caused by leaves or lights, according to the manufacturer's documentation. The advanced model offers perimeter protection for up to 8 analog channels and face recognition for up to 4 channels, with support for face libraries and search by face image.
Video, audio and network interfaces
The device supports 16 analog BNC video inputs with coaxitron connection support and 16-channel IP input (expandable to 32 channels) at up to 256 Mbps total bit rate, according to the manufacturer's documentation. Video outputs include HDMI 4K/2K/1080p and VGA with simultaneous display, as well as CVBS BNC output; audio interfaces (RCA input/output, coaxial cable audio), RJ45 10/100/1000 Mbps network port, USB 2.0/3.0, RS-485 and two SATA interfaces for hard drives are available.
Specifications
| Category | Parameter | Value |
|---|---|---|
| Model | Available model | iDS-7216HUHI-M2/X |
| IP video inputs | Number of channels | 16 channels (up to 32 channels) |
| IP video inputs | Max bit rate per channel | Up to 4 Mbps per channel |
| IP video inputs | Max. resolution | Up to 8 MP |
| IP video inputs | Supported IP camera codecs | H.265+/H.265/H.264+/H.264 |
| Analog video inputs | Number of channels | 16 channels |
| Analog video inputs | Interface | BNC (1.0 Vp-p, 75 Ω), support for coaxitron connection |
| Video inputs - HDTVI | Supported resolutions and frame rate | 8 MP (3840 × 2160)@12/15 fps; 3K (2960 × 1665)@25/20 fps; 3K (3328 × 1504)@20 fps; 5 MP (2560 × 1944)@20 fps; 4 MP (2560 × 1440)@25/30 fps; 1080P@25/30 fps; 720P@25/30 fps |
| Video inputs - AHD | Supported resolutions and frame rates | 5 MP (2560 × 1944)@20 fps; 4 MP (2560 × 1440)@25/30 fps; 1080P@25/30 fps; 720P@25/30 fps |
| Video inputs - HDCVI | Supported resolutions and frame rates | 8 MP (3840 × 2160)@12/15 fps; 3K (2880 × 1620)@25 fps; 5 MP (2592 × 1944)@20 fps; 4 MP (2560 × 1440)@25/30 fps; 1080P@25/30 fps; 720P@25/30 fps |
| Video inputs | Supported signals | HDTVI/AHD/CVI/CVBS/IP (5 signals adaptively) |
| HDMI output | Number and resolutions | 1 channel; 4K (3840 × 2160)/30 Hz; 2K (2560 × 1440)/60 Hz; 1920 × 1080/60 Hz; 1280 × 1024/60 Hz; 1280 × 720/60 Hz; HDMI/VGA output simultaneous |
| VGA output | Number and resolutions | 1 channel; 1920 × 1080/60 Hz; 1280 × 1024/60 Hz; 1280 × 720/60 Hz; HDMI/VGA simultaneous output |
| CVBS input | System | PAL/NTSC |
| CVBS output | Interface and resolution | 1 channel, BNC (1.0 Vp-p, 75 Ω); resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Playback | Synchronization | 16 channels of synchronous playback |
| Audio inputs | Local input | 1 channel (up to 16 channels optional), RCA (2.0 Vp-p, 1 kΩ) |
| Audio inputs | Audio over coaxial cable | 16 channels via coaxial cable |
| Audio output | Interface | 1 channel, RCA (line-level, 1 kΩ) |
| Two-way audio | Interface | 1 channel, RCA (2.0 Vp-p, 1 kΩ) (using audio input) |
| Video compression | Supported codecs | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Recording resolution | Available resolutions | 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame rate | Main stream | 8 MP@8 fps; 3K@12 fps; 5 MP@12 fps; 4 MP@15 fps; 8 MP Lite@15 fps; 3 MP@18 fps; 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) |
| Frame rate | Secondary stream | WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Streaming | Stream types | Video; Video and audio |
| Streaming | Dual stream | Main or auxiliary stream support |
| Video bitrate | Range | 32 Kbps to 10 Mbps |
| Audio compression | Format | G.711u |
| Audio bitrate | Value | 64 Kbps |
| Decoding | Decoding capacity | Up to 24 channels 1080P@30 fps |
| Smart features | Motion Detection 2.0 | Up to 16 channels (analog channels), people/vehicle classification, false alarm reduction, quick search by object or event type |
| Smart functions | Perimeter protection | Up to 8 channels (advanced model, analog channels), people/vehicle analysis |
| Smart functions | Face recognition | Up to 4 channels (advanced model, analog channels) face recognition; 4-channel face image capture |
| Face library | Number of libraries | Up to 16 face image libraries |
| Face library | Data protection | Hard drive failure does not cause face library data loss, as the library is archived on HDD and flash memory |
| Face detection | Functions | Face detection, face image search |
| Smart functions | Smart pLayback | Supports smart playback for enhanced viewing efficiency |
| Network | Total bit rate | 256 Mbps |
| Network | Network interface | 1 × RJ45 10/100/1000 Mbps, self-adaptive Ethernet interface |
| Networking | Remote connections | Up to 128 remote connections |
| Network protocols | Supported protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP |
| Data storage | SATA interfaces | 2 SATA interfaces |
| Data storage | Disk capacity | Up to 12 TB for each drive |
| Additional interfaces | RS-485 | 1 RS-485 interface (half-dupLex) |
| Additional interfaces | USB | Front panel: 1 × USB 2.0; rear panel: 2 × USB 3.0 |
| Alarm | Alarm inputs/outputs | None (optionally supported) |
| Power supply | Power supply voltage | 12 V DC |
| Power supply | Current | 5 A |
| Power supply | Power consumption | ≤ 15 W (without HDD) |
| Operating conditions | Operating temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Operating conditions | Operating humidity | 10% to 90% |

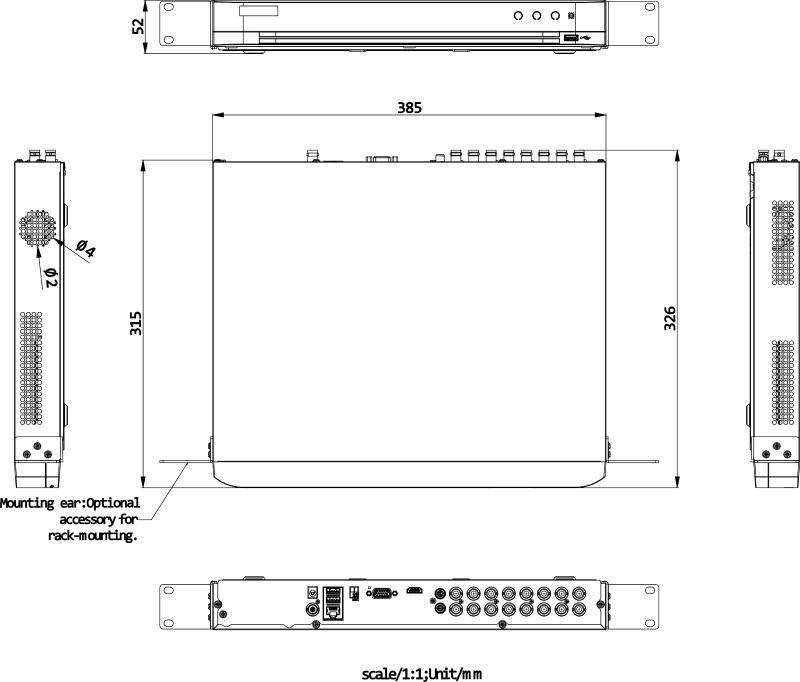

| Dimensions | Width × Depth × Height | 384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inches) |
| Weight | Net weight | ≤ 2.1 kg (4.6 lb) |
| Physical interface | Description of connectors - video | 1: video inputs; 9: video output |
| Physical interface | Description of connectors - audio | 2: audio output; 8: audio input |
| Physical interface | Description of connectors - network and USB | 6: LAN interface and USB interface |
| Physical interface | Description of connectors - power and ground | 7: 12 V DC power input; 10: GND |
| Physical interface | Description of connectors - control and video | 5: RS-485 interface; others as described by the manufacturer |
Source of technical data:manufacturer's documentation Hikvision datasheet of model iDS-7216HUHI-M2/X
FAQ - frequently asked questions
- How many analog channels does the iDS-7216HUHI-M2/X DVR support?
The DVR supports 16 channels of analog video. - Up to how many IP channels can the system be expanded on the iDS-7216HUHI-M2/X DVR?
The system can be expanded up to 32 IP channels. - What is the maximum recording resolution supported by this DVR?
The DVR supports recording up to 8 MP resolution. - Does the device support H.265 Pro+ technology?
Yes, the device supports H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 compression. - What video signals are supported on analog inputs?
HDTVI, AHD, HDCVI, CVBS and IP signals are supported on the analog inputs. - What is the maximum network bit rate provided by the DVR?
The total network bit rate is 256 Mbps. - How many face libraries can be created on the DVR?
Up to 16 face image libraries can be created. - Does damage to the hard disk cause loss of face library data?
No, hard disk damage does not cause face library data loss because the library is archived on the hard disk and flash memory. - How many face recognition channels are available in the advanced model?
Up to 4 face recognition channels are available for analog channels in the advanced model. - How many perimeter protection channels can be configured?
Up to 8 channels of perimeter protection can be configured in the advanced model for analog channels. - Is Motion Detection 2.0 available on all analog channels?
Yes, Motion Detection 2.0 is enabled by default for all analog channels. - What objects can Motion Detection 2.0 distinguish?
Motion Detection 2.0 can classify people and vehicles and reduce false alarms caused by objects such as leaves and lights. - Does the DVR support smart playback of recordings?
Yes, the device supports smart pLayback to enhance playback efficiency. - What are the supported resolutions of HDMI output?
HDMI output supports 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz and 1280 × 720/60 Hz. - What network interfaces are available on the device?
One RJ45 10/100/1000 Mbps self-adaptive interface is available. - How many hard drives can be mounted in the DVR?
Two hard drives can be mounted thanks to two SATA interfaces. - What is the maximum capacity of a single hard drive?
The maximum capacity of each hard drive is up to 12 TB. - What is the operating temperature range of the recorder?
The operating temperature range is -10 °C to +55 °C. - What are the dimensions of the iDS-7216HUHI-M2/X enclosure?
The dimensions of the enclosure are 384 × 317 × 52 mm. - What USB ports are available on the DVR housing?
There is 1 USB 2.0 port on the front panel, and 2 USB 3.0 ports on the rear panel.
The Hikvision iDS-7216HUHI-M2/X DVR provides support for 16 analog channels, expandable to 32 IP channels, with Deep Learning features such as Motion Detection 2.0, perimeter protection and face recognition. The device offers a wide range of video, audio, network and storage interfaces, according to the manufacturer's documentation.
