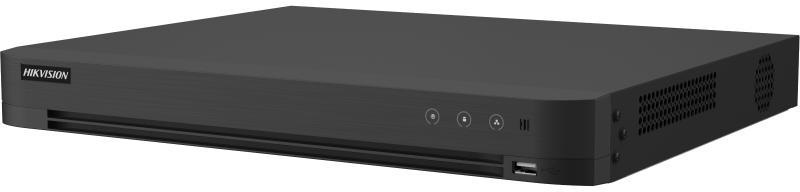

Hikvision iDS-7232HQHI-M2/XT 1U AcuSense DVR 32 channels 8 MP H.265 Pro+
- Hikvision 32-channel AcuSense DVR video recorder for HDTVI/AHD/CVI/CVBS/IP signals, support up to 8 MP and H.265 Pro+ compression
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Hikvision iDS-7232HQHI-M2/XT 32-ch 1080P 1U H.265 AcuSense DVR
The iDS-7232HQHI-M2/XT is a 32-channel 1U AcuSense DVR that supports HDTVI, AHD, HDCVI, CVBS and IP signals at resolutions up to 3K/5 MP lite. The device offers H.265 Pro+ compression, Motion Detection 2.0, perimeter protection, face recognition and support for up to 24 IP channels up to 6 MP.
- 32-channel 1U AcuSense DVR with 2 HDD slots
- Adaptive inputs of 5 signals (HDTVI/AHD/CVI/CVBS/IP)
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- Up to 3K/5 MP lite @ 12 fps and up to 8 MP recording
- Up to 24 IP channels (up to 40 channels total), each camera up to 6 MP
- Up to 24 channels of 1080P@30 fps decoding
Description and smart features
The Hikvision iDS-7232HQHI-M2/XT DVR is part of the AcuSense series and offers 32 analog channels with support for Motion Detection 2.0 for all analog channels, which enables classification of people and vehicles and significantly reduces false alarms caused by objects such as leaves or lights, as well as allows quick search by object or event type. The model supports up to 8 channels of perimeter protection (for the advanced model on analog channels) with analysis of people and vehicles, as well as up to 4 channels of face recognition and 4 channels of face detection and capture with facial image search functions.
Video, audio and networking capabilities
The device supports advanced H.265 Pro+ video compression, which can be enabled to improve encoding efficiency and reduce storage costs, with a maximum recording resolution of up to 8 MP and a wide range of supported resolutions, including 3K lite, 5 MP lite, 4 MP lite, 1080p, 720p, VGA, WD1, 4CIF and CIF depending on 1080p Lite mode. The DVR offers main and auxiliary streams with adjustable bitrates of 32 Kbps to 10 Mbps, support for video or video streaming with audio and G.711u audio compression at 64 Kbps, and IP video inputs (8 channels expandable to 40 channels, up to 6 MP per channel) with support for H.265+/H.265/H.264+/H.264 IP cameras.
Interfaces, power supply and operating conditions
The iDS-7232HQHI-M2/XT is equipped with 32 channels of analog BNC inputs with coaxitron support, HDMI output supporting resolutions up to 4K (3840 × 2160)@30 Hz and VGA output up to 1920 × 1080@60 Hz with simultaneous HDMI/VGA output, as well as CVBS (PAL/NTSC) outputs and inputs. The recorder has an RJ45 10/100/1000 Mbps network interface, two SATA connectors (up to 12 TB per drive), RS-485 (half-dupLex), 1 × USB 2.0 on the front panel and 2 × USB 3.0 on the rear panel, 12 VDC 5 A power supply, power consumption ≤ 60 W, operation in a temperature range of -10 °C to +55 °C and 10-90% humidity, and its 1U chassis measures 385 × 315 × 52 mm and weighs ≤ 2.1 kg.
| Category | Parameter | Value |
|---|---|---|
| Model | Available model | iDS-7232HQHI-M2/XT |
| Device type | Description | 32-ch 1080P 1U H.265 AcuSense DVR |
| Key features | Number of channels | 32 channels |
| Key features | Number of HDD slots | 2 × SATA |
| Key features | Signal inputs | 5 signal inputs adaptively (HDTVI/AHD/CVI/CVBS/IP) |
| Key features | Compression technology | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| Key features | Encoding capability | Up to 3K/5 MP lite @ 12 fps |
| Key features | IP inputs | Up to 24 channels of IP cameras, each up to 6 MP (8 IP channels, expand to 40 channels total) |
| Key features | Decoding capability | Up to 24 channels of 1080P@30 fps |
| Smart features | Motion Detection 2.0 | Up to 32 channels (analog channels), people/vehicle analysis, false alarm reduction, quick search by object or event |
| Smart functions | Perimeter protection | Up to 8 channels (advanced model, analog channels), people/vehicle analysis |
| Smart functions | Face recognition | Up to 4 channels (advanced model, analog channels) |
| Smart functions | Face detection and capture | 4 face capture channels, face image detection and face image search functions |
| Smart functions | Face image library | Up to 16 face image libraries; HDD damage does not cause library data loss due to HDD and flash memory copies |
| Smart functions | Face image comparison | Face image comparison alert from HD analog camera: 4 channels |
| Smart functions | Smart playback | Supports smart pLayback to enhance playback efficiency |
| Recording | Max recording resolution | Up to 8 MP |
| Recording | Encoding resolutions without 1080p Lite | 3K lite, 5 MP lite, 4 MP lite, 1080p, 720p, VGA, WD1, 4CIF, CIF |
| Registration | Encoding resolutions with 1080p Lite | 3K lite, 5 MP lite, 4 MP lite, 1080p lite, 720p lite, VGA, WD1, 4CIF, CIF |
| Main stream | 3K stream (no 1080p lite) | 3K lite@12 fps; 4 MP lite@15 fps; 1080p Lite@20 fps; 720p/WD1/4CIF/VGA/CIF@20 fps |
| Main stream | 5 MP stream (no 1080p Lite) | 5 MP lite@12 fps; 4 MP lite@15 fps; 1080p Lite@20 fps; 720p/WD1/4CIF/VGA/CIF@20 fps |
| Main stream | 4 MP stream (no 1080p Lite) | 4 MP lite@15 fps; 1080p Lite@25 fps (P)/30 fps (N); 720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) |
| Main stream | 1080p stream (no 1080p Lite) | 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Main stream | 720p stream (no 1080p Lite) | 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Main stream | 1080p Lite mode on | 3K lite/5 MP lite@12 fps; 4 MP lite@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Auxiliary stream | Resolution and fps | WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N) |
| Streams | Stream type | Video; video and audio |
| Streams | Dual stream | Supported |
| Streams | Video bitrate | 32 Kbps to 10 Mbps |
| Audio | Audio compression | G.711u |
| Audio | Audio bitrate | 64 Kbps |
| Video inputs/outputs | IP video input | 8 channels (up to 40 channels total), each up to 4 Mbps, up to 6 MP, support H.265+/H.265/H.264+/H.264 IP cameras |
| Video inputs/outputs | Analog video input | 32 channels, BNC interface (1.0 Vp-p, 75 Ω), support for coaxitron connection |
| Video inputs/outputs | HDMI output | 1 channel: 3840 × 2160/30 Hz, 2560 × 1440/60 Hz, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video inputs/outputs | VGA output | 1 channel: 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video inputs/outputs | HDMI/VGA output | Simultaneous HDMI/VGA output |
| Video inputs/outputs | CVBS input | PAL/NTSC |
| Video inputs/outputs | CVBS output | 1 channel, BNC (1.0 Vp-p, 75 Ω), PAL resolution: 704 × 576, NTSC: 704 × 480 |
| Playback | Simultaneous playback | 16 channels |
| Video standards | HDTVI input | 5 MP (2880 × 1620)@25 fps, 5 MP (2592 × 1944)@20 fps, 4 MP (2560 × 1440)@30 fps, 4 MP (2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
| Video standards | AHD input | 5 MP (2560 × 1944)@20 fps, 4 MP (2560 × 1440)@30 fps, 4 MP (2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
| Video standards | HDCVI input | 5 MP (2880 × 1620)@25 fps, 5 MP (2592 × 1944)@20 fps, 4 MP (2560 × 1440)@30 fps, 4 MP (2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
| Audio | Audio output | 1 channel, RCA (linear, 1 kΩ) |
| Audio | Audio input | 1 channel, RCA (2.0 Vp-p, 1 kΩ), 32 channels via coaxial cable |
| Audio | Two-way audio | 1 channel, RCA (2.0 Vp-p, 1 kΩ) (using audio input) |
| Networking | Decoding capability | Up to 24 channels 1080P@30 fps |
| Network | Total throughput | 256 Mbps |
| Network | Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP |
| Networking | Remote connections | Up to 128 |
| Network | Network interface | 1 × RJ45 10/100/1000 Mbps, Ethernet self-adaptive interface |
| Hik-Connect/DDNS | Support | Support for Hik-Connect and DDNS (Dynamic Domain Name System) |
| Bandwidth management | Output bandwidth limit | Configurable |
| Auxiliary interfaces | SATA connectors | 2 × SATA |
| Auxiliary interfaces | Disk capacity | Up to 12 TB for each drive |
| Auxiliary interfaces | Serial interface | RS-485 (half-dupLex) |
| Auxiliary interfaces | USB interface (front panel) | 1 × USB 2.0 |
| Auxiliary interfaces | USB interface (rear panel) | 2 × USB 3.0 |
| Auxiliary interfaces | Alarm inputs/outputs | None (optionally supported) |
| Power supply and environment | Power supply | 12 VDC, 5 A |
| Power supply and environment | Power consumption | ≤ 60 W |
| Power supply and environment | Operating temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Power supply and environment | Operating humidity | 10% to 90% |

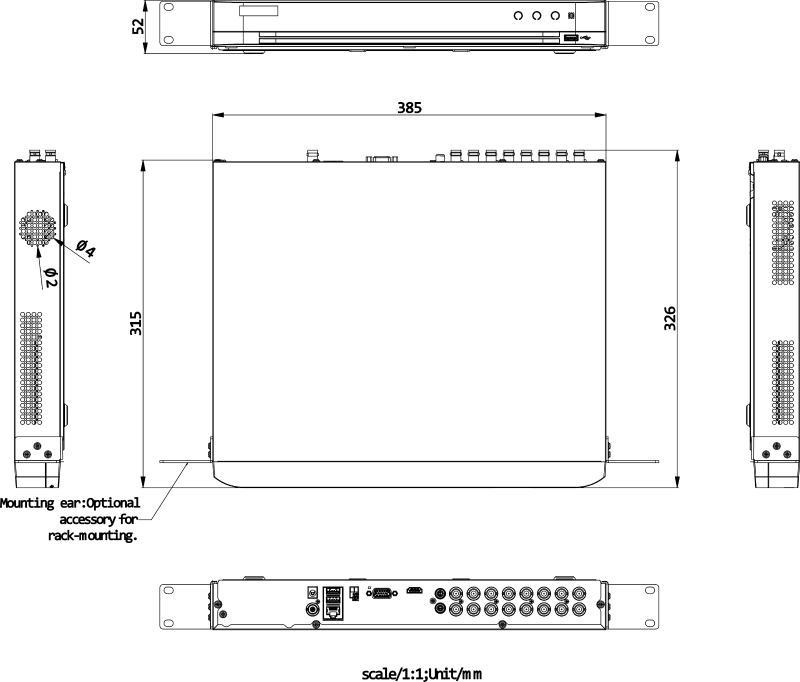

| Dimensions and weight | Dimensions (S × G × W) | 385 × 315 × 52 mm (15.2 × 12.4 × 2.0 in) |
| Dimensions and weight | Weight | ≤ 2.1 kg (4.6 lb) |
| Physical connectors - rear panel | Description 1 | 1 - video inputs |
| Physical connectors - rear panel | Description 2 | 2 - audio output |
| Physical connectors - rear panel | Description 3 | 3 - HDMI interface |
| Physical connectors - rear panel | Description 4 | 4 - RS-485 interface |
| Physical connectors - rear panel | Description 5 | 5 - LAN interface and USB interface |
| Physical connectors - rear panel | Description 6 | 6 - 12 VDC power input |
| Physical connectors - rear panel | Description 7 | 7 - audio input |
| Physical connectors - rear panel | Description 8 | 8 - VGA interface |
| Physical connectors - rear panel | Description 9 | 9 - video output |
| Physical connectors - rear panel | Description 10 | 10 - GND |
Source of technical data:manufacturer's documentation Hikvision datasheet for model iDS-7232HQHI-M2/XT. manufacturer's documentation
FAQ - frequently asked questions
- How many channels does the iDS-7232HQHI-M2/XT DVR support?
The iDS-7232HQHI-M2/XT DVR supports 32 analog channels. - How many hard drives can be installed in the iDS-7232HQHI-M2/XT?
You can install 2 SATA drives in the DVR. - What is the maximum capacity of a single disk in the iDS-7232HQHI-M2/XT?
Each disk can have a capacity of up to 12 TB. - What types of video signals are supported by the analog inputs?
The analog inputs support HDTVI, AHD, HDCVI, CVBS and IP signals. - What is the maximum recording resolution of this DVR?
The maximum recording resolution is 8 MP. - Does the DVR support IP cameras and in what number?
The DVR supports 8 IP channels, expandable to 40 channels in total, with a maximum resolution of 6 MP per channel. - What video codecs are supported?
The supported video codecs are H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264. - What audio compression technology is used?
The DVR uses G.711u audio compression. - What is the maximum network bandwidth of the DVR?
The total network bandwidth is 256 Mbps. - How many remote connections can the iDS-7232HQHI-M2/XT support?
The DVR can support up to 128 remote connections. - What network protocols are supported by this device?
The supported network protocols are TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, and ISUP. - Does the DVR support Hik-Connect service?
The DVR supports Hik-Connect and DDNS (Dynamic Domain Name System). - What is the maximum decoding capacity of the DVR?
The maximum decoding capacity is up to 24 channels 1080P@30 fps. - What output resolutions does the HDMI connector support?
HDMI output supports 3840 × 2160/30 Hz, 2560 × 1440/60 Hz, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, and 1280 × 720/60 Hz. - What output resolutions does the VGA connector support?
The VGA output supports 1920 × 1080/60 Hz, 1280 × 1024/60 Hz and 1280 × 720/60 Hz. - How many channels of simultaneous playback are available?
Simultaneous playback of up to 16 channels is available. - In what temperature range can the DVR operate?
The DVR can operate in temperatures from -10 °C to +55 °C. - What is the operating humidity allowed for the device?
The acceptable operating humidity ranges from 10% to 90%. - What input resolutions are supported for HDTVI signals?
HDTVI input supports 5 MP (2880 × 1620)@25 fps, 5 MP (2592 × 1944)@20 fps, 4 MP (2560 × 1440)@30 fps, 4 MP (2560 × 1440)@25 fps, 1080p@30/25 fps and 720p@30/25 fps. - What are the dimensions and weight of the iDS-7232HQHI-M2/XT DVR?
The dimensions of the device are 385 × 315 × 52 mm, and the weight does not exceed 2.1 kg.
The Hikvision iDS-7232HQHI-M2/XT DVR provides support for 32 analog channels and up to 24 IP channels, as well as smart functions such as Motion Detection 2.0, perimeter protection and face recognition. The device offers H.265 Pro+ compression, high network bandwidth and a wide set of video, audio and data interfaces, according to the manufacturer's documentation.
