AcuSense Hikvision DS-7608NXI-I2/8P/S(E) NVR IP 8 channels PoE H.265+ 4K HDMI
- Hikvision DS-7608NXI-I2/8P/S(E) NVR for IP surveillance, support up to 8 cameras, video analytics features with face recognition, 2 × SATA up to 14 TB each
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

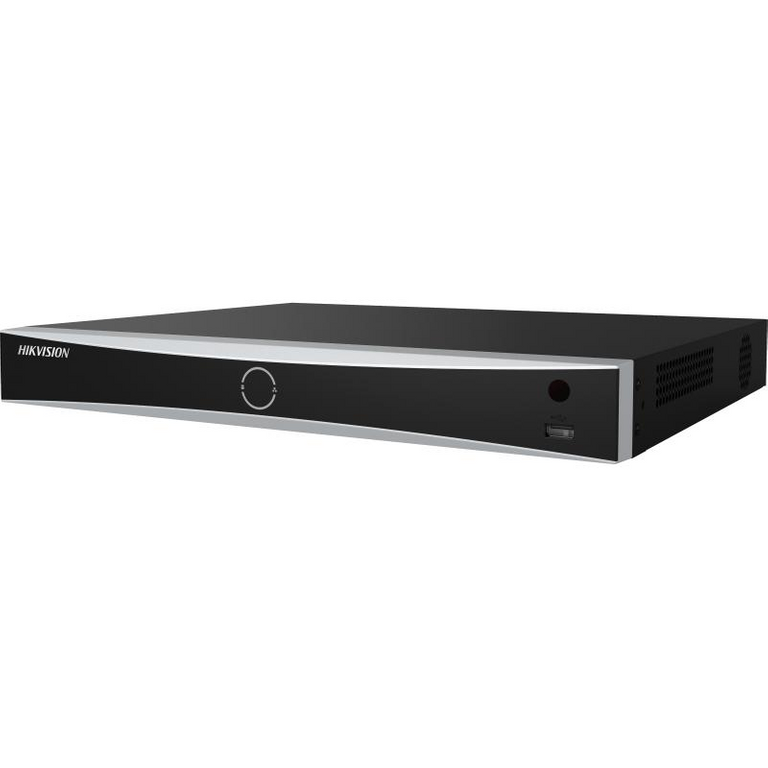

DS-7608NXI-I2/8P/S(E) AcuSense Series NVR
The Hikvision DS-7608NXI-I2/8P/S(E) NVR is part of the AcuSense series and supports intelligent functions based on deep learning algorithms. The device can connect up to 8 IP cameras and performs advanced video analytics functions, including face recognition and perimeter protection.
- Supports H.265+/H.265/H.264+/H.264 video formats.
- Intelligent analytics based on deep learning algorithm.
- Perimeter protection of up to 4 channels.
- Up to 4 channels of face recognition from video stream.
- Up to 8 channels of face recognition from face images.
- Up to 8 IP cameras can be connected.
Smart functions and video analytics
The DS-7608NXI-I2/8P/S(E) DVR offers NVR-implemented intelligent analytics, including face recognition, perimeter protection and motion detection 2.0. The device also works with camera-implemented AI functions such as face recognition, perimeter protection, video structuring, motion detection 2.0, ANPR, people counting and other VCA functions, according to the manufacturer's documentation. Face recognition features include a library of up to 16 image databases with a total capacity of up to 50,000 face images (each image ≤ 512 KB, total capacity ≤ 1 GB) and support for face image comparison on 8 channels. The DVR supports face detection and analysis with face capture on 4 channels (up to 8 MP, H.264/H.265), and offers motion detection 2.0 with human/vehicle analysis on all channels of Hikvision cameras. The NVR's perimeter protection function includes 4 channels of 2 MP (H.264/H.265) with video analysis for human and vehicle recognition to reduce false alarms, with support for up to 12 rules, while supporting camera-level perimeter analysis on all channels. In terms of ANPR, all channels are supported, along with analysis of vehicle features and license plate attributes such as plate number, plate color, plate type, vehicle make, vehicle color, and vehicle type.
Compression, recording and video outputs
In terms of compression and recording, the DVR uses H.265+ compression, which effectively reduces storage space by up to 75%, according to the manufacturer. The device provides full-channel connection to IP cameras and compatibility with third-party network cameras, according to the manufacturer's documentation. Video outputs include independent HDMI and VGA outputs, with the HDMI output supporting resolutions up to 4K (3840 × 2160)/30 Hz and the VGA output supporting resolutions up to 1920 × 1080/60 Hz. A BNC-type CVBS output (1.0 Vp-p, 75 ohm) with PAL 704 × 576 or NTSC 704 × 480 resolution is also available. In terms of storage and playback, the device offers up to 2 SATA interfaces for connecting hard drives and 8-channel synchronous playback at resolutions up to 1080p. The DVR also supports Smart functions and integration with POS systems, and live viewing and subdivisions of the viewing windows and auxiliary port can be configured in 1/2/4/6/8/9 modes, according to the manufacturer's documentation.
Network interfaces, PoE and general parameters
The DS-7608NXI-I2/8P/S(E) is equipped with a 1 × RJ-45 10M/100M/1000M Mbps network interface (self-adaptive Ethernet port) with support for up to 128 remote connections. Supported network protocols include TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP and HTTPS, and in terms of APIs, ONVIF (S/G profile), SDK and ISAPI are supported. The DVR is compatible with IE11, Chrome V57, Firefox V52, Safari V12 and Edge V89 or newer browsers, and supports ONVIF (version 2.5) and RTSP camera access protocol. The built-in PoE switch provides 8 RJ45 10M/100M Mbps ports (self-adaptive Ethernet ports) with a total power supply of ≤ 150 W, compliant with the IEEE 802.3 af/at standard. Ancillary interfaces include 2 SATA interfaces with up to 14TB capacity per drive, 4/1 alarm I/O, and USB interfaces (1 × USB 2.0 on the front panel and 1 × USB 3.0 on the rear panel). The DVR is equipped with physical interfaces: 8 PoE interfaces, LAN network interface, audio input/output, HDMI interface, VGA interface, alarm input/output, USB interface and VIDEO OUT, GND terminal, power socket and power switch, according to the manufacturer's documentation.
| Category | Parameter | Value |
|---|---|---|
| Model | Available model | DS-7608NXI-I2/8P/S(E) |
| Series | Series | AcuSense |
| Video compression | Video formats | H.265+/H.265/H.264+/H.264 |
| Compression and recording | H.265+ compression | Effectively reduces storage space by up to 75% |
| Compression and recording | Connection to IP cameras | Full-channel connection to IP cameras |
| Compression and recording | Compatibility | Compatible with third-party network cameras |
| Video input | IP video input | 8-ch |
| Bandwidth | Incoming bandwidth | 80 Mbps |
| Throughput | Outgoing bandwidth | 256 Mbps |
| Video outputs | HDMI output | 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz |
| Video outputs | VGA output | 1920 × 1080/60 Hz |
| Video outputs | Video output mode | HDMI/VGA independent output |
| Video outputs | CVBS output | 1-channel, BNC (1.0 Vp-p, 75 Ω), PAL: 704 × 576, NTSC: 704 × 480 |
| Audio outputs | Audio output | 1-channel, RCA (linear, 1 kΩ) |
| Audio | Two-way audio | 1-channel, RCA (2.0 Vp-p, 1 kΩ) |
| Decoding | Decoding format | H.265+/H.265/H.264+/H.264 |
| Recording | Recording resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Recording | Supports 32 MP/24 MP inputs | NVR supports up to 4-channel 32 MP/24 MP IP video inputs |
| Playback | Synchronous playback | 8-channel, up to 1080p |
| Preview | Live view window split | 1/2/4/6/8/9 |
| Preview | Auxiliary port window split | 1/2/4/6/8/9 |
| Decoding capability | Enable AI via NVR | 20 channels @ 1080p (30 fps) |
| Decoding capability | Disable AI by NVR | 32 channels @ 1080p (30 fps) |
| Recording | Dual stream recording | Support |
| Audio compression | Audio formats | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Streams | Stream type | Video, video and audio |
| Intelligent analytics | AI overlaid by NVR | Face recognition, area protection, motion detection 2.0 |
| Intelligent analytics | AI by camera | Face recognition, perimeter protection, video structuring, building object throwing, motion detection 2.0, ANPR, people counting, VCA |
| Intelligent analytics | Engine | Engine 1, engine mode is configurable |
| Face recognition | Face image library | Up to 16 face image libraries, up to 50,000 face images in total (each image ≤ 512 KB, total capacity ≤ 1 GB) |
| Face recognition | Comparison of face images | 8 channels |
| Face recognition | Face detection and analysis | Face image comparison, face image registration, face image search |
| Face recognition | Face detection and analysis performance | Human face capture on 4 channels (up to 8 MP, H.264/H.265) |
| Motion detection 2.0 | Human/vehicle analysis via NVR | On all channels (Hikvision cameras) |
| Motion detection 2.0 | Human/vehicle analysis by camera | All channels |
| Perimeter protection | Human/vehicle analysis via NVR | 4 channels, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms; up to 12 rules in total |
| Perimeter protection | By camera | All channels |
| ANPR | Channel support | By camera: all channels |
| ANPR | Vehicle features | License plate number, license plate color, license plate type |
| ANPR | License plate attributes | Vehicle make, vehicle color, vehicle type |
| Network | Network interface | 1 × RJ-45 10M/100M/1000M Mbps, self-adaptive Ethernet port |
| Network | Remote connection | 128 |
| Network | Network protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| API | API protocols | ONVIF (S/G profile), SDK, ISAPI |
| Browsers | Compatible browser | IE11, Chrome V57, Firefox V52, Safari V12, Edge V89 or later version |
| Camera access | Camera access protocol | ONVIF (version 2.5), RTSP |
| PoE | Interface | 8 × RJ45 10M/100M Mbps, self-adaptive Ethernet port |
| PoE | PoE power supply | ≤ 150 W |
| PoE | Standard | IEEE 802.3 af/at |
| Auxiliary interfaces | SATA | 2 SATA interfaces |
| Auxiliary interfaces | Disk capacity | Up to 14 TB per drive |
| Auxiliary interfaces | Alarm inputs/outputs | 4/1 |
| Auxiliary interfaces | USB interface | Front panel: 1 × USB 2.0; rear panel: 1 × USB 3.0 |
| GUI | GUI language | Polish |
| Power supply | Power supply range | 100 to 240 V AC, 50 to 60 Hz |
| Power supply | Power consumption (without HDD and PoE) | ≤ 30 W (without HDD and PoE disabled) |
| Operating environment | Operating temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Operating environment | Operating humidity | 10% to 90% |
| Enclosure | Housing type | 1U enclosure |

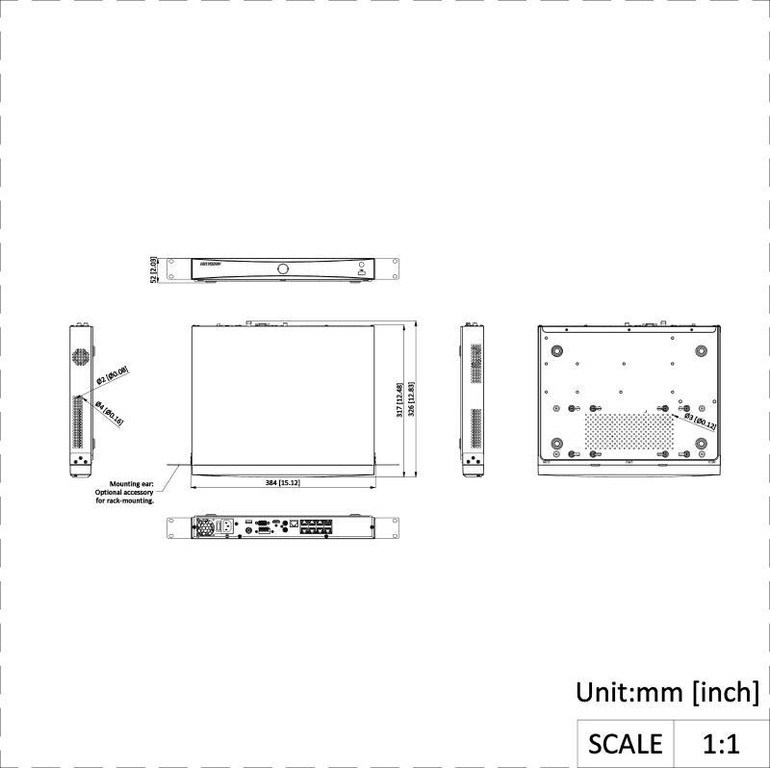

| Dimensions and weight | Dimensions (W × L × H) | 384 × 317 × 52 mm (15.1" × 12.5" × 2.0") |
| Dimensions and weight | Weight | ≤ 2.5 kg (without hard drive, 5.5 lbs.) |
| Certifications | Certification obtained | CE, CB, REACH, WEA, UKCA, LOA |
| Certifications | CE standards | EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
| Physical interface | No. 1 | PoE interfaces |
| Physical interface | No. 2 | LAN network interface |
| Physical interface | No. 3 | AUDIO INPUT/AUDIO OUTPUT |
| Physical interface | No. 4 | HDMI interface |
| Physical interface | No. 5 | VGA interface |
| Physical interface | No. 6 | Alarm input/output |
| Physical interface | No. 7 | USB interface and VIDEO OUT |
| Physical interface | No. 8 | GND |
| Physical interface | No. 9 | Power supply |
| Physical interface | No. 10 | Power switch |
Source of technical data:manufacturer's documentation Hikvision datasheet of model DS-7608NXI-I2/8P/S(E). manufacturer's documentation
FAQ - frequently asked questions
- How many IP cameras can be connected to the DS-7608NXI-I2/8P/S(E) DVR?
The DVR allows you to connect up to 8 IP cameras. - What video compression formats does this DVR support?
The device supports H.265+, H.265, H.264+ and H.264 formats. - What kind of storage space savings does H.265+ compression provide, according to the manufacturer?
H.265+ compression effectively reduces storage space by up to 75%. - How many SATA interfaces are available on the DVR?
The DVR has 2 SATA interfaces. - What is the maximum capacity of a single hard drive?
Each hard drive can have a capacity of up to 14 TB. - How many channels of synchronous playback does the device support?
The DVR supports 8-channel synchronous playback in resolutions up to 1080p. - What resolutions does the HDMI output support?
The HDMI output supports 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz and 1920 × 1080/60 Hz. - What resolutions does the VGA output support?
VGA output supports 1920 × 1080/60 Hz resolution. - Are the HDMI and VGA outputs independent?
Yes, the device provides independent HDMI and VGA outputs. - How many PoE ports does the DVR have?
The DVR is equipped with 8 RJ45 10M/100M Mbps PoE ports. - What is the maximum total PoE power?
The total PoE power is ≤ 150 watts. - What PoE standards are supported?
The device supports IEEE 802.3 af/at standards. - What network protocols are supported by the DVR?
Supported protocols include TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP and HTTPS. - What ONVIF standards is the DVR compatible with?
The DVR supports ONVIF (S/G profile) and ONVIF version 2.5 camera access protocol. - How many remote connections can the device support at one time?
The DVR can support up to 128 remote connections. - In what temperature range can the DVR operate?
The operating temperature range is -10 °C to 55 °C (14 °F to 131 °F). - What is the operating humidity range of the device?
The operating humidity ranges from 10% to 90%. - What type of housing does the recorder have?
The recorder has a 1U type housing. - What certifications does the device have?
The device has CE, CB, REACH, WEA, UKCA and LOA certifications. - Is the user interface available in Polish?
Yes, the GUI language of the device is Polish.
The Hikvision DS-7608NXI-I2/8P/S(E) Network DVR provides support for up to 8 IP cameras, integrated PoE power, and advanced video analytics based on deep learning. The device combines high recording resolution, wide network compatibility and a rich set of interfaces, allowing it to be used in extensive monitoring systems, according to the manufacturer's documentation.
