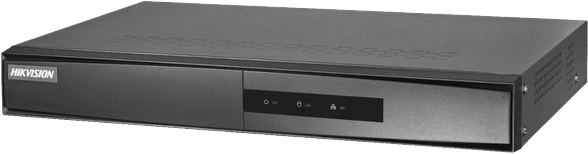

Hikvision DS-7104NI-Q1/M compact NVR 4 channels IP H.265+ 6 MP SATA max 6 TB

Hikvision DS-7104NI-Q1/M Value 7 Series NVR

The DS-7104NI-Q1/M NVR is a 4-channel Value 7 series NVR, supporting H.265+/H.265/H.264+/H.264 compression and recording up to 6 MP resolution, according to the manufacturer's documentation. The device offers simultaneous HDMI/VGA output, SATA interface up to 6 TB, Smart functions (line crossing, intrusion detection) and Hik-Connect remote access, according to the manufacturer's documentation.

• H.265+/H.265/H.264+/H.264 video compression support.
• Up to 40 Mbps incoming bandwidth and 60 Mbps outgoing bandwidth.
• Support up to 4 channels of network camera inputs, camera resolution up to 6 MP.
• Capable of decoding up to 4 1080p channels or 2 4 MP channels or 1 6 MP channel (30 fps).
• 1 SATA interface with support for up to 6 TB hard drive.
• Smart features: line crossing, intrusion detection, smart search and playback.

Features and functions of DS-7104NI-Q1/M DVR

The Value 7 Series DS-7104NI-Q1/M DVR supports H.265+, H.265, H.264+ and H.264 video compression and provides incoming bandwidth of up to 40 Mbps and outgoing bandwidth of up to 60 Mbps, according to the manufacturer's documentation. The device supports up to 4 channels of IP network cameras with up to 6 MP resolution and recording in 6 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF and QCIF resolutions. H.265+ compression effectively reduces storage space requirements by up to 75% compared to traditional methods, according to the manufacturer's documentation. The DVR offers simultaneous HDMI and VGA video output with a maximum resolution of 1920 × 1080p at 60 Hz for both interfaces, according to the manufacturer's documentation.

Network functions, playback and interfaces

The device supports synchronous playback from up to 4 channels and decoding of 4 channels of 1080p (30 fps), 2 channels of 4 MP (30 fps) or 1 channel of 6 MP (30 fps), according to the manufacturer's documentation. The stream type can include video only or video and audio. The DVR supports remote connections of up to 16 clients and TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP and UPnP™ network protocols, according to the manufacturer's documentation. There is one self-adaptive RJ-45 10/100 Mbps Ethernet network interface and two USB 2.0 ports on the rear panel. Smart features include support for line crossing, intrusion detection, and smart search of a selected area in the recording and smart playback for improved performance, as well as automatic search and addition of network cameras when the device is activated, according to the manufacturer's documentation.

Construction, operating conditions and model available

The DS-7104NI-Q1/M DVR has a single SATA interface with support for up to 6TB of disk capacity for local storage of recordings, according to the manufacturer's documentation. The unit's power supply is 12 VDC, 1.5 A, and total power consumption does not exceed 10 W, according to the manufacturer's documentation. The operating temperature range is from -10°C to +55°C, and the operating humidity is from 10% to 90%, allowing expLoatation in typical indoor conditions, according to the manufacturer's documentation. The dimensions of the housing are 265 × 223 × 48 mm, and the weight of the device is less than or equal to 1 kg, according to the manufacturer's documentation. The manufacturer lists the designation of the available model as DS-7104NI-Q1/M D PL, according to the manufacturer's documentation.

Technical data source: manufacturer Hikvision documentation model datasheet DS-7104NI-Q1/M D PL . Dokumentacja producenta

FAQ - frequently asked questions

• How many channels of IP cameras does the DS-7104NI-Q1/M DVR support?
  DS-7104NI-Q1/M DVR supports 4 channels of IP camera inputs, according to the manufacturer's documentation.
• What is the maximum resolution of IP cameras supported by this DVR?
  The device supports IP cameras with up to 6 MP resolution, according to the manufacturer's documentation.
• What video compression standards are supported?
  The DVR supports H.265+, H.265, H.264+ and H.264 compression, according to the manufacturer's documentation.
• What is the maximum incoming and outgoing bandwidth of the DVR?
  The maximum incoming bandwidth is 40 Mbps and the outgoing bandwidth is 60 Mbps, according to the manufacturer's documentation.
• Up to what resolution is it possible to record on this DVR?
  The DVR allows recording up to 6 MP resolution, according to the manufacturer's documentation.
• What recording resolutions are available?
  The available recording resolutions are 6 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF and QCIF, according to the manufacturer's documentation.
• What are the video decoding capabilities?
  The device can decode 4 channels of 1080p (30 fps) or 2 channels of 4 MP (30 fps) or 1 channel of 6 MP (30 fps), according to the manufacturer's documentation.
• How many channels can be played back synchronously?
  Synchronous playback is available on up to 4 channels, according to the manufacturer's documentation.
• What video outputs does the DVR have?
  The DVR has an HDMI output and a VGA output, both 1-channel, according to the manufacturer's documentation.
• Can the HDMI and VGA outputs operate simultaneously?
  Yes, the DVR supports simultaneous HDMI/VGA output, according to the manufacturer's documentation.
• What resolutions do the HDMI and VGA outputs support?
  The HDMI and VGA outputs support 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, and 1280 × 720/60 Hz resolutions, according to the manufacturer's documentation.
• What Smart functions are available on this DVR?
  The DVR supports Smart functions such as line crossing and intrusion detection, according to the manufacturer's documentation.
• Is smart search for recordings available?
  Yes, the device supports smart search for a selected area in video and smart playback to improve playback performance, according to the manufacturer's documentation.
• Does the DVR automatically search for network cameras?
  Yes, automatic search and addition of network cameras is available when the device is activated, according to the manufacturer's documentation.
• What network protocols are supported?
  The DVR supports TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP and UPnP™ protocols, according to the manufacturer's documentation.
• How many remote connections can the device support?
  The device can support up to 16 remote connections, according to the manufacturer's documentation.
• How many USB ports are available on the DVR?
  There are 2 USB 2.0 ports on the rear panel, according to the manufacturer's documentation.
• What hard drive capacity does the SATA interface support?
  The SATA interface supports a drive capacity of up to 6 TB, according to the manufacturer's documentation.
• What is the power supply and power consumption of the DVR?
  The power supply is 12 VDC, 1.5 A, and the power consumption is less than or equal to 10 W, according to the manufacturer's documentation.
• In what temperature and humidity range can the device operate?
  The recorder can operate in temperatures from -10°C to +55°C and humidity from 10% to 90%, according to the manufacturer's documentation.

The DS-7104NI-Q1/M network DVR is designed to record and playback video from up to 4 IP cameras of up to 6 MP resolution, with simultaneous HDMI and VGA output and support for Smart video analysis, according to the manufacturer's documentation. The device offers H.265+ compression, an incoming bandwidth of 40 Mbps, an outgoing bandwidth of 60 Mbps, and support for a SATA drive of up to 6 TB for long-term storage of recordings, according to the manufacturer's documentation.
