Switch POE HIKVISION DS-3E1518P-SI

16 Gigabit PoE ports, 2 Gigabit fiber ports. IEEE 802.3at/af standard for PoE ports Network topology management, alarm sending, network status monitoring Surge protection 6 KV for PoE ports AF/AT range can sit up to 300 m in tr

Brand

Symbol

DS-3E1518P-SI

Producer code

6941264087434

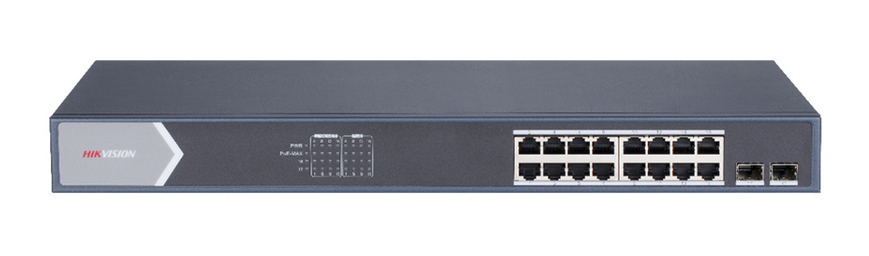

Switch POE HIKVISION DS-3E1518P-SI (MANAGEABLE)

Key features

16 Gigabit PoE ports, 2 Gigabit fiber ports.
IEEE 802.3at/af standard for PoE ports
Network topology management, alarm sending, network status monitoring
6 KV surge protection for PoE ports
AF/AT range can reach up to 300m in extension mode.
PoE watchdog automatically detects and activates unresponsive cameras
Various Layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS, etc

Purpose

Switch the 8-port HikVision DS-3E1518P-SI is designed to power IP cameras and will find application in medium-sized CCTV systems. The management capability allows you to easily set QoSrules , link aggregation, as well as SNMPor VLAN

PoE technology provides network connectivity and reduces installation costs by eliminating the need to run a separate power cable to each device. In addition to the cameras in this way can be powered network devices that use this technology, such as IP phone, access point, router

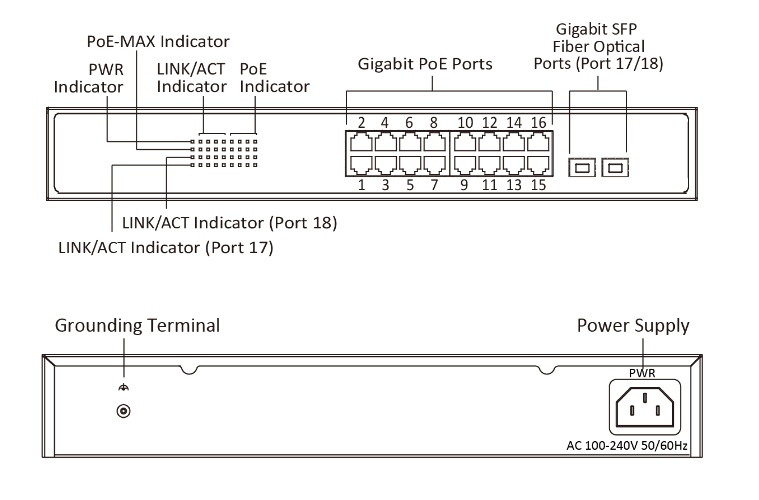

Description of external ports

Technical specifications

nETWORK PARAMETERS
number of ports	16 × gigabit PoE, 2 × gigabit SFP
type of ports	rJ45 port, full dupLex, MDI/MDI-X adaptive
standard	iEEE 802.3af, IEEE 802.3at
forwarding mode	store-and-forward switching
operation mode	standard mode (default); Expansion mode
mAC address table	8 K
throughput	36 Gbps
transmission speed	26.784 Mpps
internal cache	4.1 Mbits
pOE POWER SUPPLY
poE standard	iEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
poE power pin	8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
poE ports	1-16
max port power	30 W
poE power budget	225 W
gENERAL
housing	metal
net weight	2.735 kg
gross weight	3.31 kg
dimensions	440 mm × 44 mm × 220.8 mm (W × H × D)
operating temperatures	-10 °C to 55 °C
storage temperature	-40 °C to 85 °C
operating humidity	5% to 95%
storage humidity	5% to 95%
power supply	100 to 240 VAC, 50/60 Hz, Max. 4 A. 250 W
maximum current consumption	250 W
