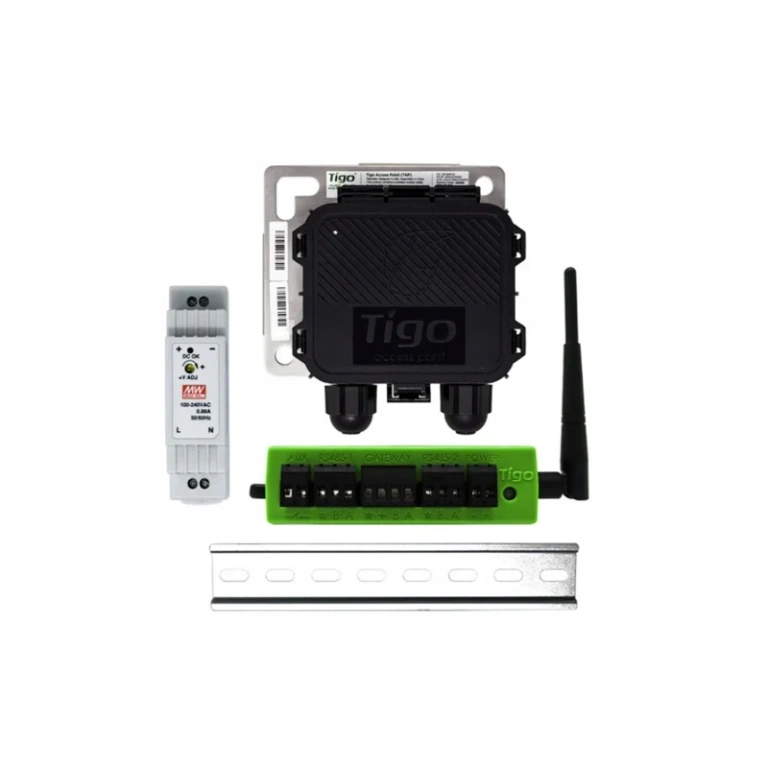

Tigo Communication Kit: Cloud Connect Advanced (CCA) with Access Point TAP, power supply and DIN rail
The Tigo Communication Kit combines the Cloud Connect Advanced (CCA) module and the Tigo Access Point (TAP) into a compLetic system for monitoring, optimization and security of photovoltaic installations. It enables communication with Tigo TS4 devices and meets the requirements of NEC 690.12 standards for rapid shutdown.
- Monitor PV system operation at the module level
- Wireless communication with TS4-A-O, TS4-A-S, TS4-A-M
- Compliant with NEC 2017, 2020 and 2023 (Rapid Shutdown)
- Support for up to 900 TS4 devices via up to 7 TAPs
- Power supply and DIN rail mounting included
Product Description
Tigo Cloud Connect Advanced (CCA) is a communication gateway and data logger (data logger) that connects Tigo TS4 modules to pLatform of Tigo Energy Intelligence cloud. It is responsible for operational data collection, performance monitoring and management of MLPE (Module Level Power Electronics) security functions.
Tigo Access Point (TAP) is a wireless communication access point that creates a mesh network between TS4 modules and CCAs. With RS485 communication and power over the same connection, the TAP provides stable data transfer and Rapid Shutdown function for the entire PV installation.
Features and advantages
The kit allows full integration into PV systems, regardless of inverter type. CCA records data from inverters, sensors, energy meters and Modbus devices. TAP, on the other hand, extends the range of Tigo's wireless network, supporting up to 300 TS4 devices within a 35-meter radius.
Technical data - Cloud Connect Advanced (CCA)
| Parameter | Value |
|---|---|
| Input voltage | 12-24 V DC (up to 2 TAPs); 24 V DC (3 TAPs and more) |
| Current consumption | 1 A |
| Power consumption | 3-10 W |
| Communication | Ethernet, USB, RS485, Wi-Fi |
| Support for TS4 devices | up to 900 modules via 7 TAPs |
| Operating temperature range | -20 °C to +85 °C |
| Dimensions (H × B × T) | 31 × 115.5 × 71.5 mm |
| Weight | 126 g |
| Mounting | On a DIN rail |
| Cooling | Natural convection |
| Installation altitude | up to 3,000 m above sea level. |
Technical data - Tigo Access Point (TAP)
| Parameter | Value |
|---|---|
| Power supply | 5-25 V DC (with CCA) |
| Power consumption | 0.5 W (average), 1 W (peak) |
| Operating temperature range | -30 °C to +70 °C |
| Degree of protection | IP68 / NEMA Type 3R |
| Communication | RS485 (TAP-CCA), wireless with TS4 |
| Supported devices | up to 300 TS4 modules |
| Max. distance TAP-TS4 | 35 m (115 ft) |
| Dimensions (with bracket) | 126 × 130 × 27 mm |
| Weight | 227 g |
Source of technical data: datasheets ofCCA (002-00141-30 Rev. 1.5) and TAP (002-00050-30 Rev. 1.3) models.Link to the manufacturer
FAQ - frequently asked questions
- 1. What is the CCA + TAP kit used for?
For communication and monitoring of PV installations with Tigo TS4 modules and management of quick disconnect functions. - 2. How many TS4 modules can the CCA support?
Up to 900 PV modules with a maximum of 7 TAPs. - 3. Does the TAP operate wirelessly?
Yes, the TAP communicates with the TS4 wirelessly over a mesh network. - 4. Does the TAP require a separate power supply?
No, it is powered by an RS485 communication cable from the CCA. - 5. What are the mounting options?
The CCA is mounted on a DIN rail, the TAP can be mounted on a PV module frame or support structure. - 6. Does the kit comply with NEC requirements?
Yes, compliant with NEC 690.12 (2017/2020/2023). - 7. What communication interfaces does the CCA have?
Ethernet, RS485, USB, Wi-Fi (depending on configuration). - 8. Does the kit work with other Modbus devices?
Yes, the CCA supports Modbus inverters, meters, sensors and controllers. - 9. What is the environmental resistance of the TAP?
IP68, suitable for outdoor operation. - 10. What is the warranty?
25 years (according to Tigo Energy's policy).
Summary
The Tigo CCA + TAP kit is a compLeks solution for monitoring, control and security of PV installations. It allows wireless communication with TS4 modules, remote monitoring of system operation and meeting Rapid Shutdown security standards, while maintaining simple installation and high reliability.
